Repair Procedures: Removal
- Turn the ignition switch OFF and disconnect the battery negative (-) cable.
- Remove the rear seat (LH).
(Refer to Body - "REAR SEAT ASSEMBLY ")

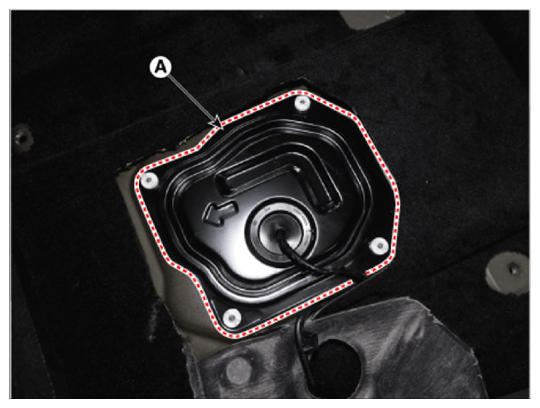

- Remove the fuel pump service cover (A).IMPORTANT:

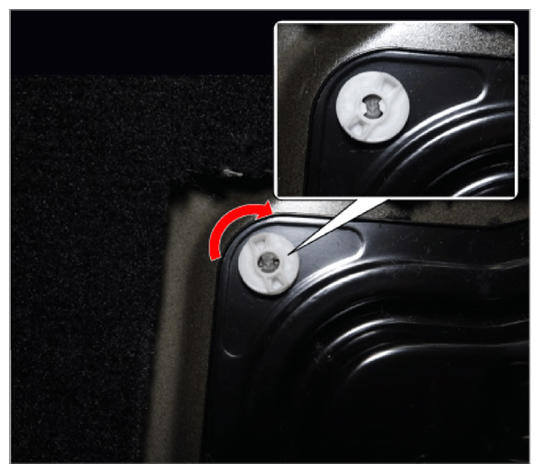

- When removing the fuel pump service cover, remove the 4 clips by rotating them clockwise as shown in the below illustration.

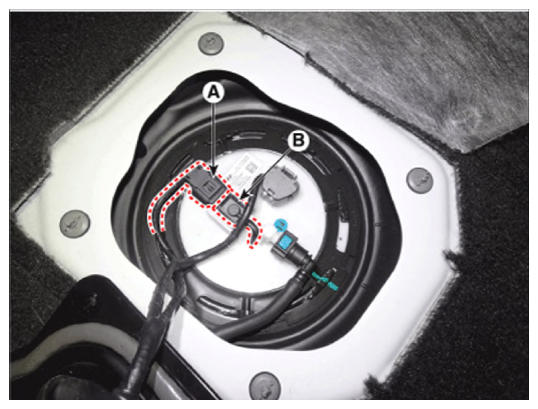

- Disconnect the fuel tank pressure sensor connector (A).
- Remove the fuel tank pressure sensor (B) after releasing the hooks vertically.
