Repair Procedures: Removal

  1. Turn the ignition switch OFF and disconnect the battery negative (-) cable.
  2. Disconnect the variable force solenoid connector (A).
  3. Remove the variable force solenoid from the engine after loosening mounting bolt (B).

    Variable force solenoid (VFS) mounting bolt:

    9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb.ft)

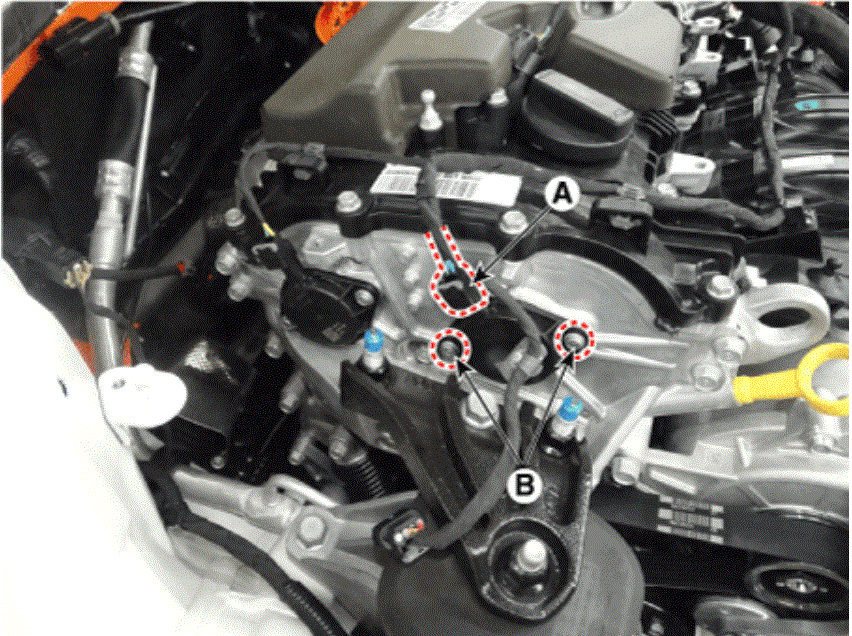

    Variable force solenoid (VFS) [Bank 1/Intake]

    G15467288Courtesy of HYUNDAI MOTOR AMERICA

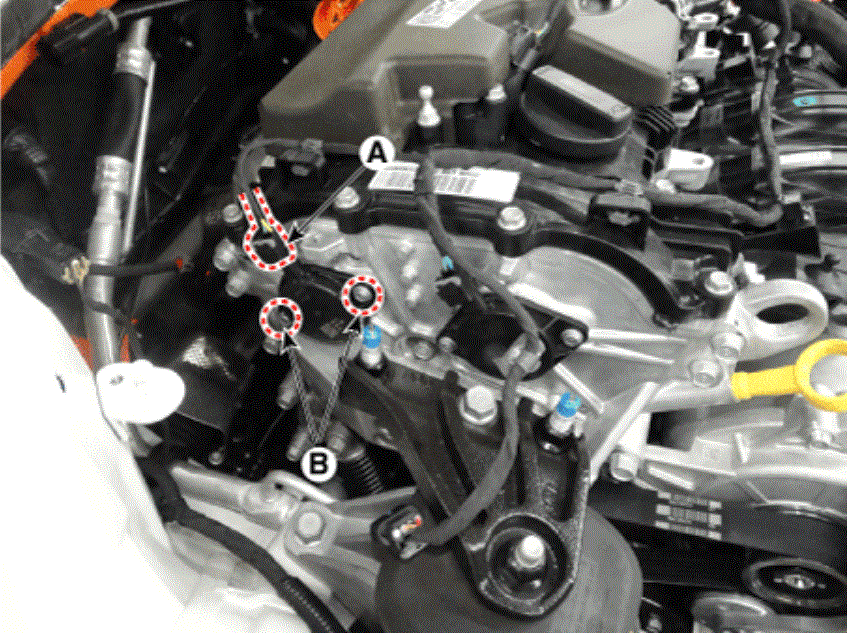

    Variable force solenoid (VFS) [Bank 1/Exhaust]

    G15467289Courtesy of HYUNDAI MOTOR AMERICA
