Repair Procedures: Removal

  1. Turn ignition switch OFF and disconnect the (+) battery cable.
  2. Remove the console upper cover. (Refer to Body - "FLOOR CONSOLE ASSEMBLY ")
  3. Remove the electric shift button.

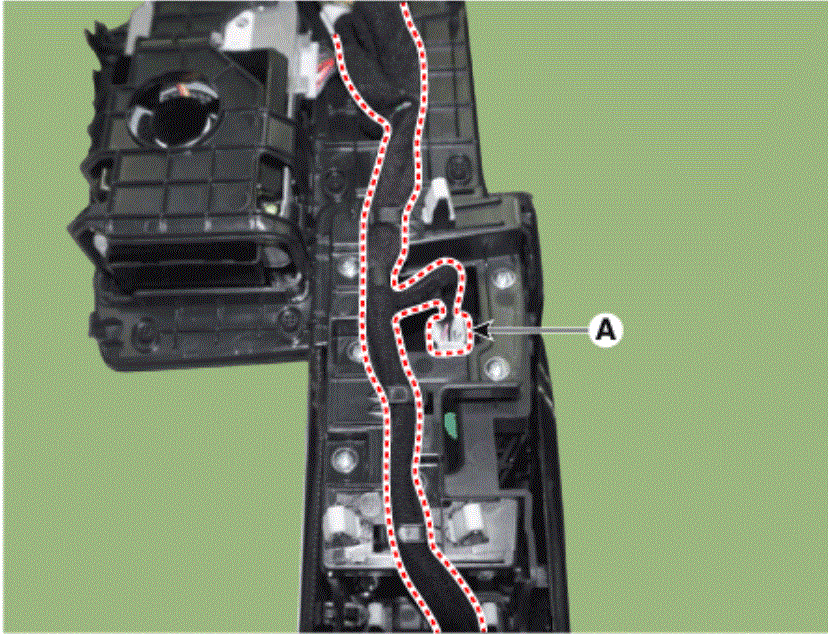

    1. Disconnect the connector (A) and then separate the wire.
      G15460717Courtesy of HYUNDAI MOTOR AMERICA

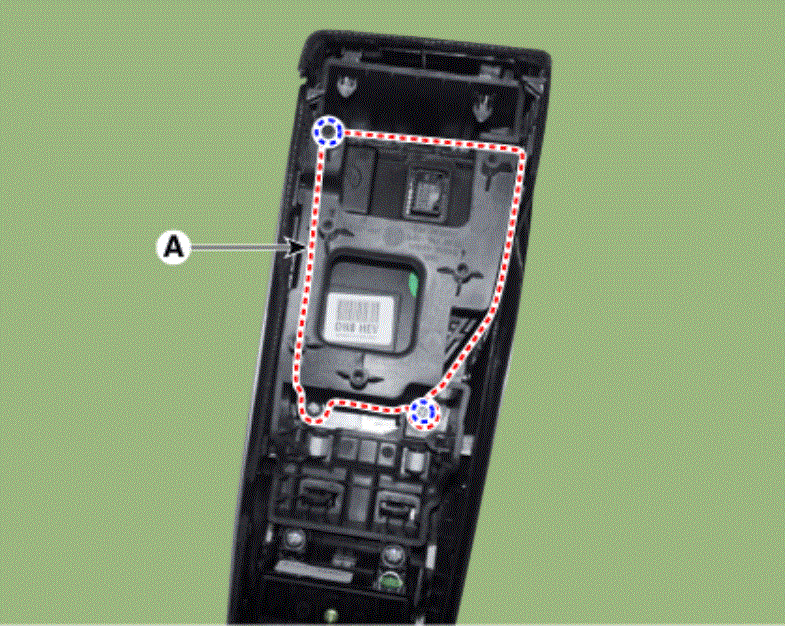

    2. Loosen the screw and then removing the shift button assembly (A).
      G15460718Courtesy of HYUNDAI MOTOR AMERICA

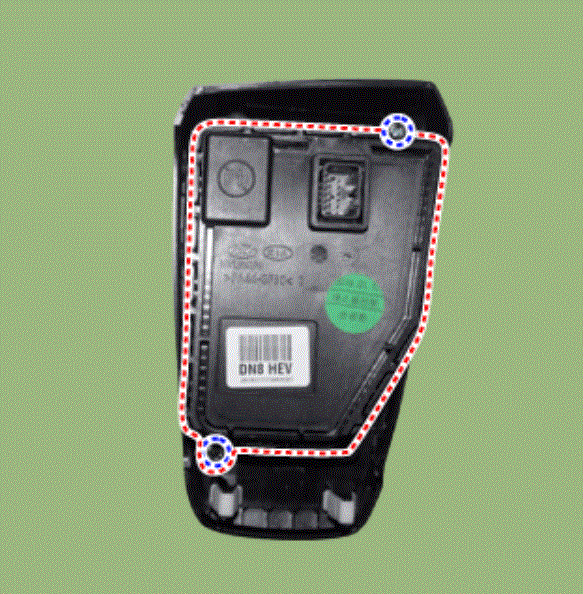

    3. Loosen the screw (B) and then removing the console upper cover (A).
      G15460719Courtesy of HYUNDAI MOTOR AMERICA

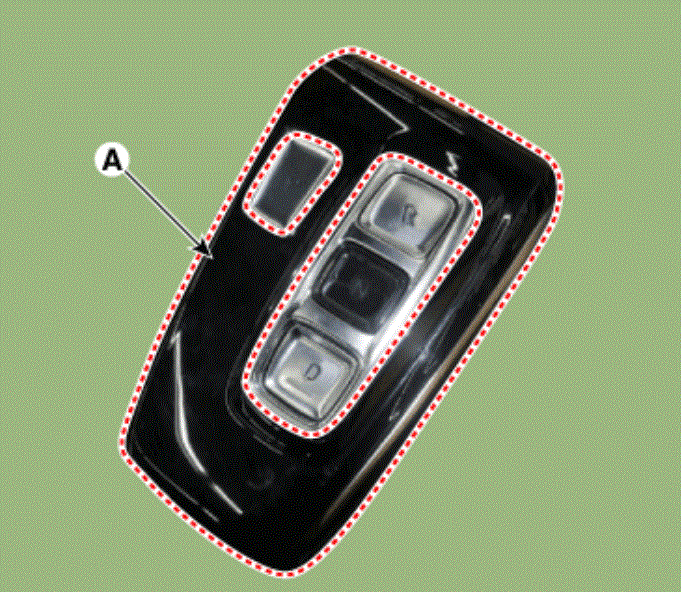

      G15460720Courtesy of HYUNDAI MOTOR AMERICA
    4. Loosen the screw and then removing the upper cover (A) from shift button (B).

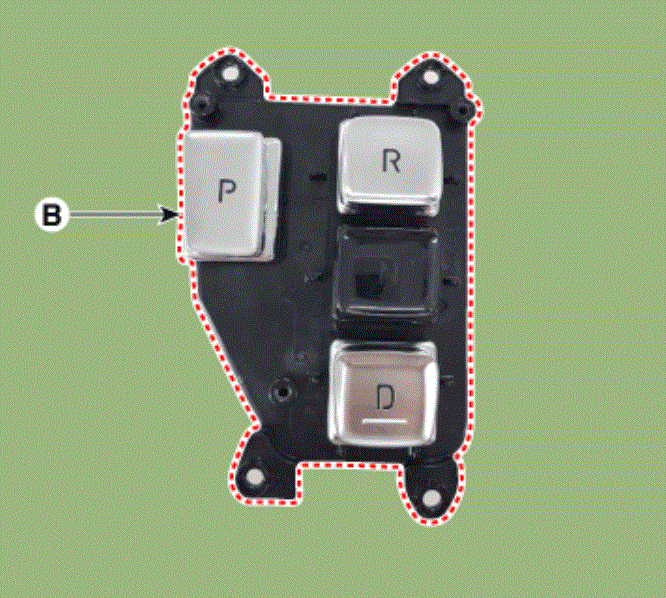

      G15460721Courtesy of HYUNDAI MOTOR AMERICA

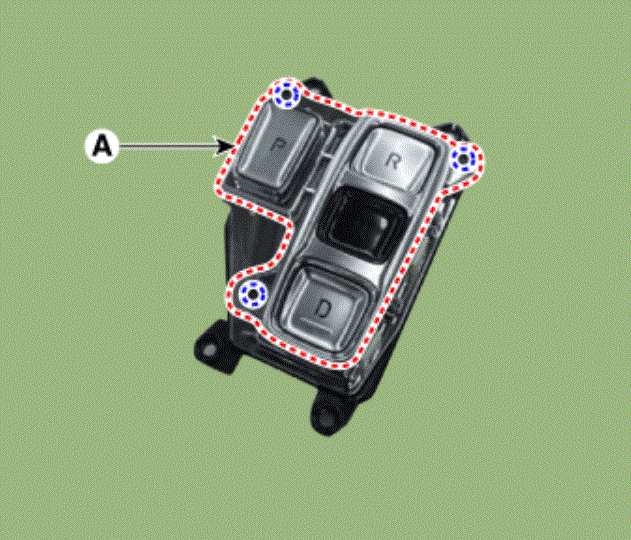

      G15460722Courtesy of HYUNDAI MOTOR AMERICA
