Repair Procedures: Installation
- Install in the reverse order of removal.
- Perform the procedures related in the ECM after replacing the TCM. (Refer to Engine Control/Fuel System - "ENGINE CONTROL MODULE (ECM) ")
- Perform the TCM adaptive values learning procedure. (Refer to Automatic Transaxle Control System - "Repair Procedures ")
- Perform EOP oil flow deviation learning using the diagnostic tool
- Connect the VCI data cable to the self-diagnosis connector located at the lower section of the driver-side crash pad.
- Turn ON the engine and power up the VCI.

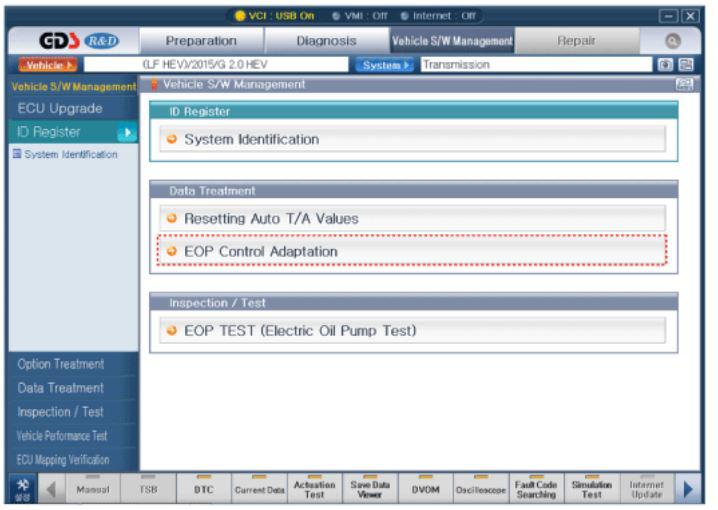

- Select the vehicle model from the diagnostic tool screen.

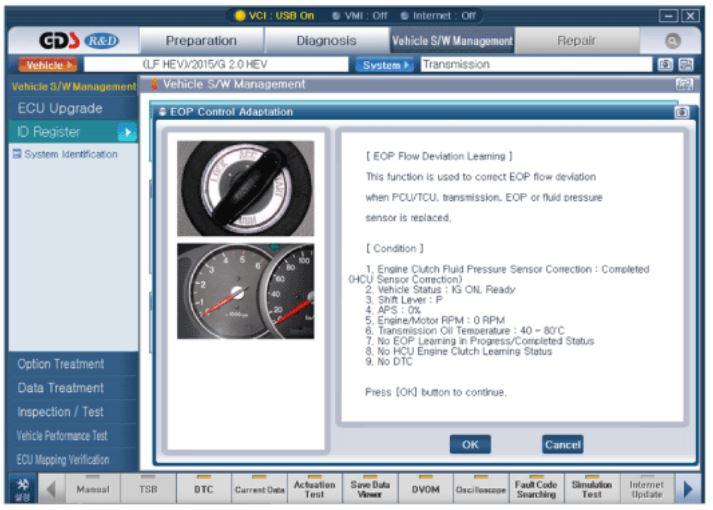

- Commence EOP flow deviation learning.
