Repair Procedures: Removal
- Shut off the high voltage circuit. (Refer to HIGH VOLTAGE SHUT-OFF PROCEDURES )
- Remove the under cover. (Refer to Engine Mechanical System - "ENGINE ROOM UNDER COVER ")
- Drain the engine coolant. (Refer to Engine Mechanical System - "COOLANT ")
- Drain the coolant of hybrid motor cooling system.

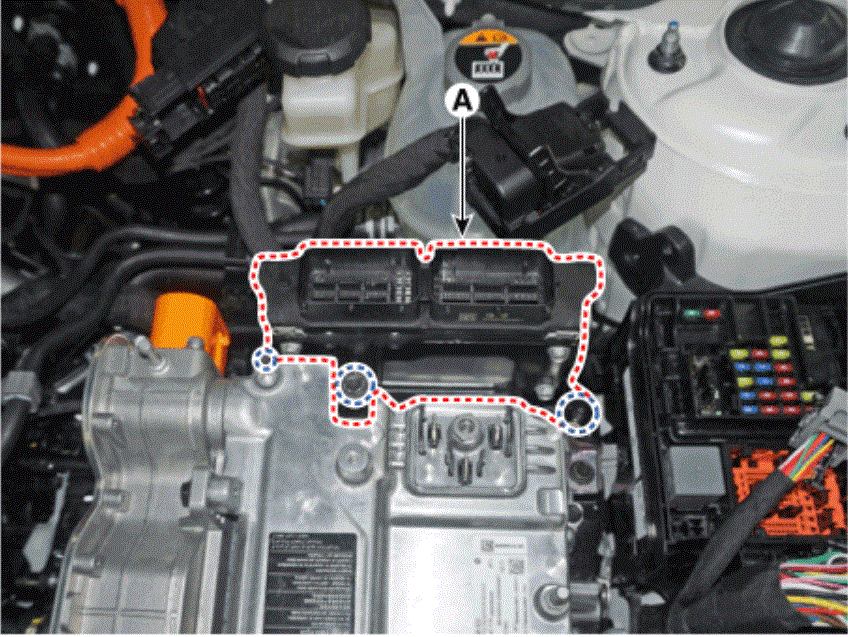

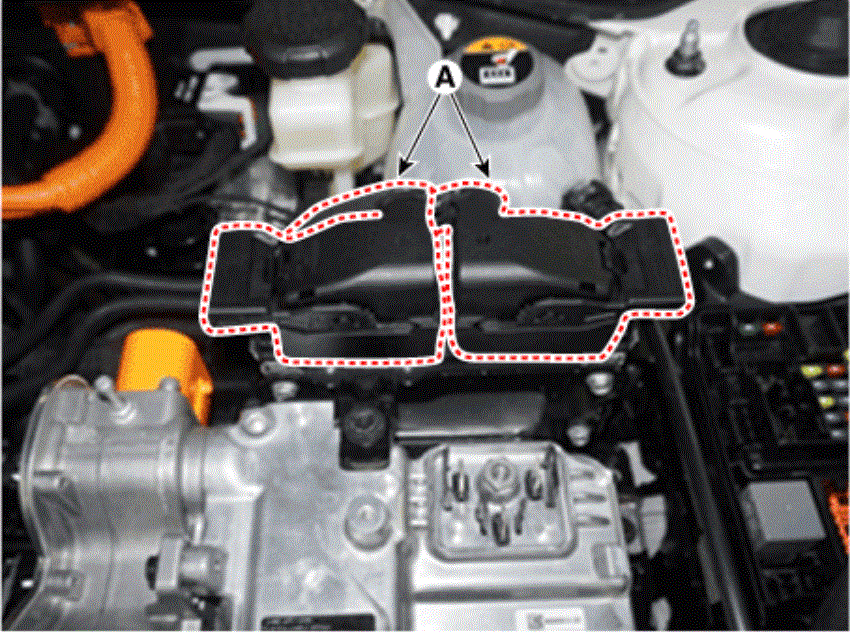

- Disconnect the TCM connector (A).
- Loosen the bolt and then removing the TCM (A)
Tightening torque:
9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb-ft)
