Repair Procedures: Removal

Information

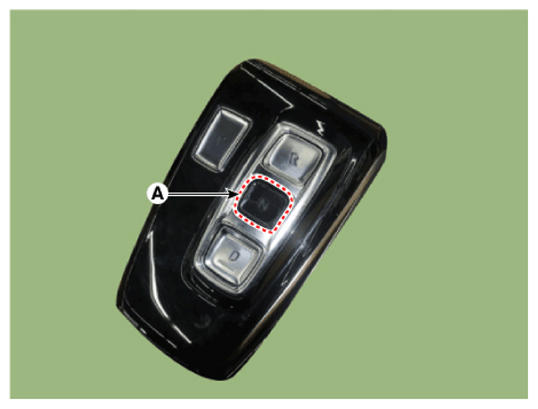

• Before removal, press the brake pedal while the ignition switch is ON and press the N button (A) for a long time to position it in the N position, then remove the battery (-) terminal.

Courtesy of HYUNDAI MOTOR AMERICA

1. Turn ignition switch OFF and disconnect the negative (-) battery cable.

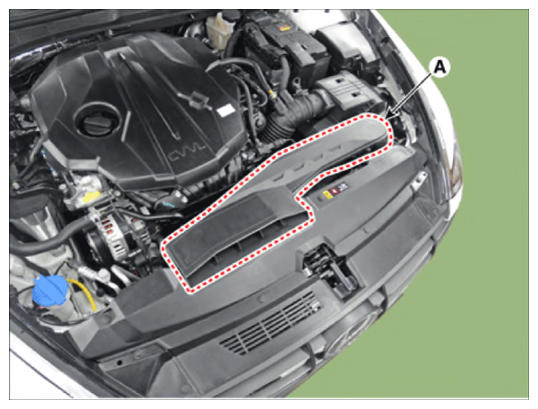

2. Remove the air duct (A).

   Courtesy of HYUNDAI MOTOR AMERICA

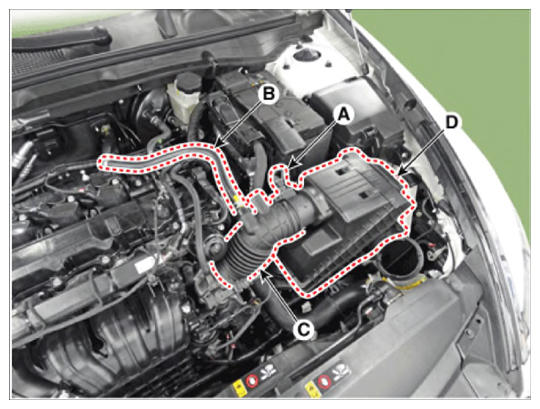

3. Remove the air cleaner assembly.
   1. Disconnect the Mass Air Flow Sensor (MAFS) connector (A).
   2. Separate the bleeder hose (B).
   3. Separate the intake hose (C).
   4. Remove the air cleaner assembly (D).

      Tightening torque:

      Intake hose clamp: 2.9 - 4.9 N.m (0.3 - 0.5 kgf.m, 2.2 - 3.6 lb-ft)

      Air cleaner mounting bolt: 7.8 - 9.8 N.m (0.8 - 1.0 kgf.m, 5.8 - 7.2 lb-ft)

   Courtesy of HYUNDAI MOTOR AMERICA

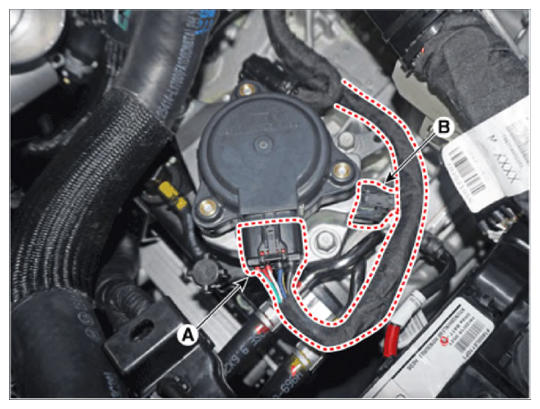

4. Disconnect the electronic shift actuator connector (A).
5. Disconnect the position sensor connector (B).

   Courtesy of HYUNDAI MOTOR AMERICA

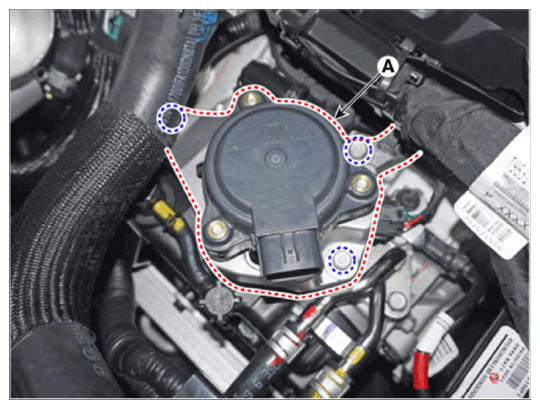

6. Loosen the mounting bolts and then removing the electronic shift actuator (A).

   Courtesy of HYUNDAI MOTOR AMERICA

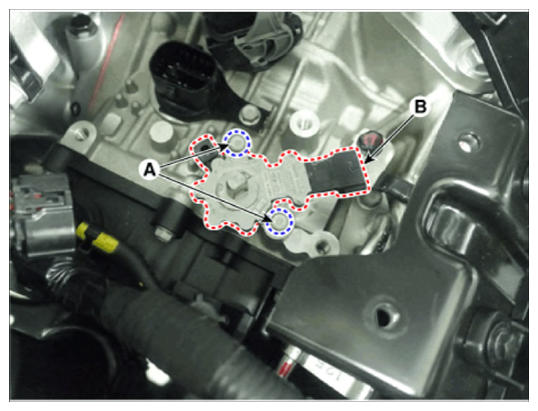

7. Loosen the mounting bolts (A) and then removing the position sensor (B).

   Courtesy of HYUNDAI MOTOR AMERICA
