Repair Procedures: Removal

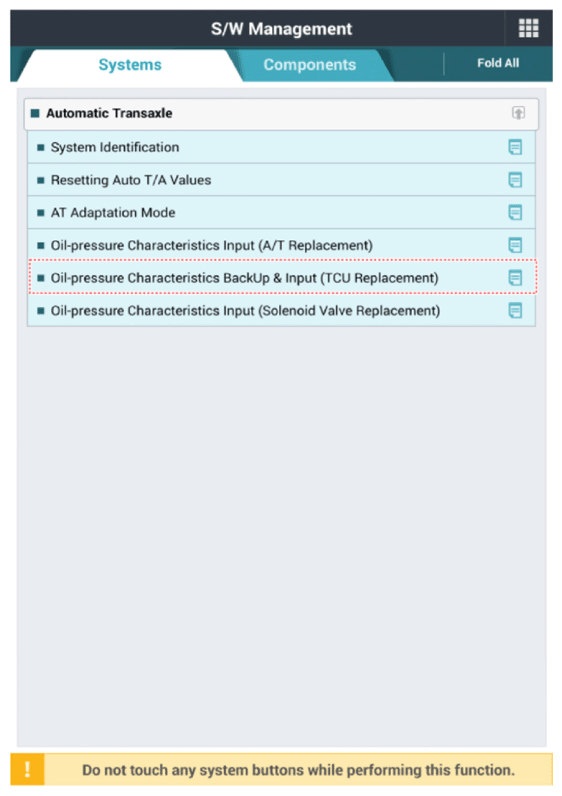

  1. Perform the oil pressure characteristics backup procedure using the diagnostic tool when replacing with a new TCM.
    G14630077Courtesy of HYUNDAI MOTOR AMERICA
  2. Turn ignition switch OFF and disconnect the negative (-) battery cable.

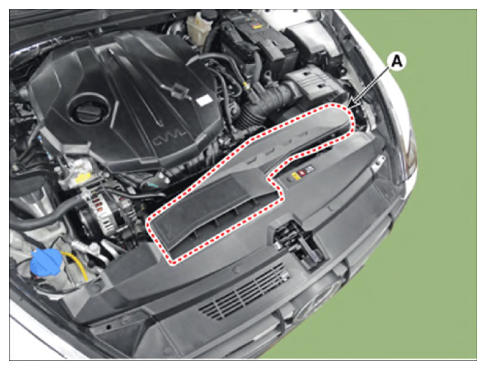

  3. Remove the air duct (A).
    G14630078Courtesy of HYUNDAI MOTOR AMERICA
  4. Remove the air cleaner assembly.

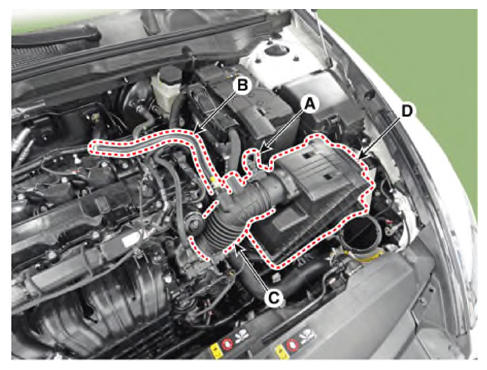

    1. Disconnect the Mass Air Flow Sensor (MAFS) connector (A).
    2. Separate the bleeder hose (B).
    3. Separate the intake hose (C).
    4. Remove the air cleaner assembly (D).

      Tightening torque:

      Intake hose clamp: 2.9 - 4.9 N.m (0.3 - 0.5 kgf.m, 2.2 - 3.6 lb-ft)

      Air cleaner mounting bolt: 7.8 - 9.8 N.m (0.8 - 1.0 kgf.m, 5.8 - 7.2 lb-ft)

    G14630079Courtesy of HYUNDAI MOTOR AMERICA

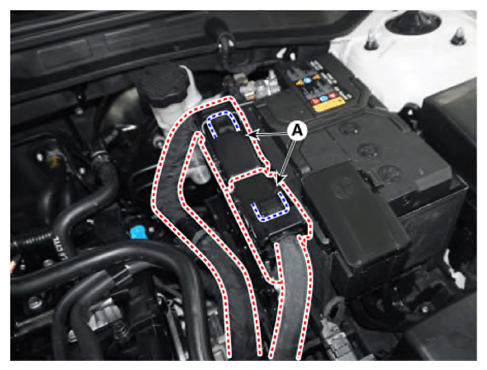

  5. Disconnect the TCM connector (A).
    1. Disconnect the TCM connector (A).
      G14630080Courtesy of HYUNDAI MOTOR AMERICA

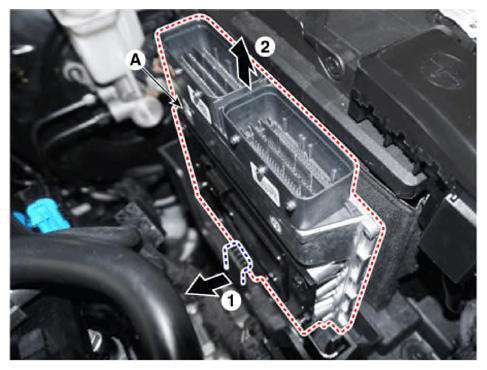

    2. Pull the clip and then removing the TCM (A).
    G14630081Courtesy of HYUNDAI MOTOR AMERICA
