Repair Procedures: Removal

  1. Disconnect the negative (-) battery terminal.
  2. Remove the crash pad upper garnish.

    (Refer to Body - "CRASH PAD GARNISH ")

  3. Remove the crash pad center garnish.

    (Refer to Body - "CRASH PAD GARNISH ")

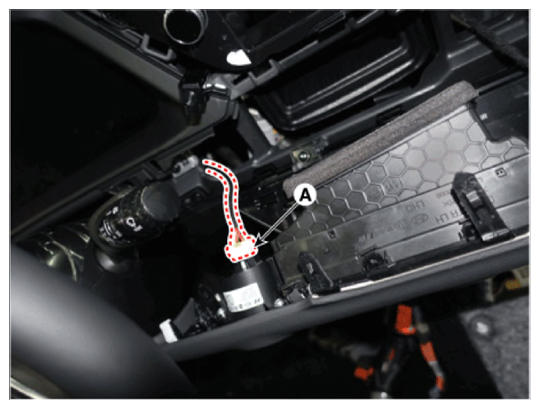

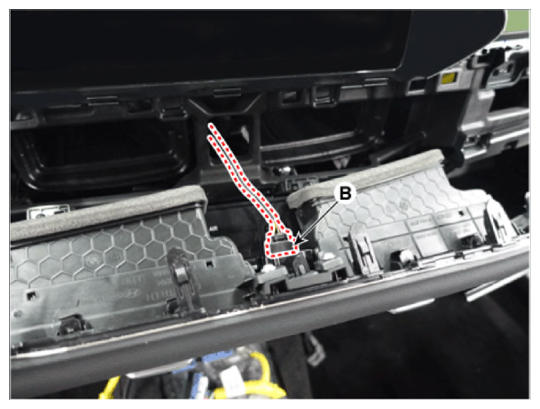

  4. Disconnect the start/stop button connector (A) and hazard switch connector (B).
    G14628024Courtesy of HYUNDAI MOTOR AMERICA
    G14628025Courtesy of HYUNDAI MOTOR AMERICA
  5. Remove the start/stop button after removing the screws.
