Repair Procedures: Removal

  1. Turn ignition switch OFF and disconnect the negative (-) battery cable.
  2. Remove the console upper cover.

    (Refer to Body - "FLOOR CONSOLE ASSEMBLY ")

  3. Remove the electric shift button.

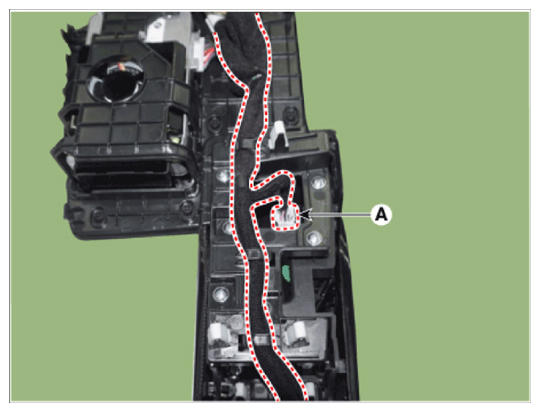

  1. Disconnect the connector (A) and then separate the wire.
    G14626364Courtesy of HYUNDAI MOTOR AMERICA

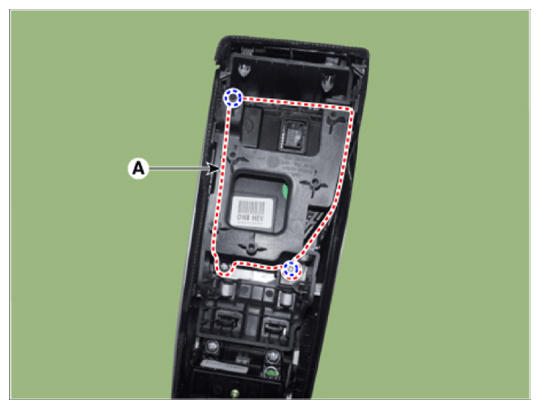

  2. Loosen the screw and then removing the shift button assembly (A).
    G14626365Courtesy of HYUNDAI MOTOR AMERICA

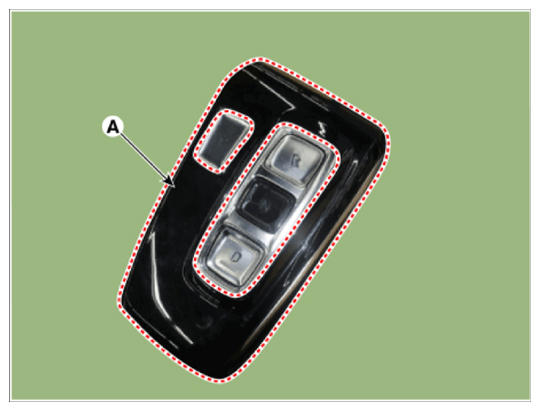

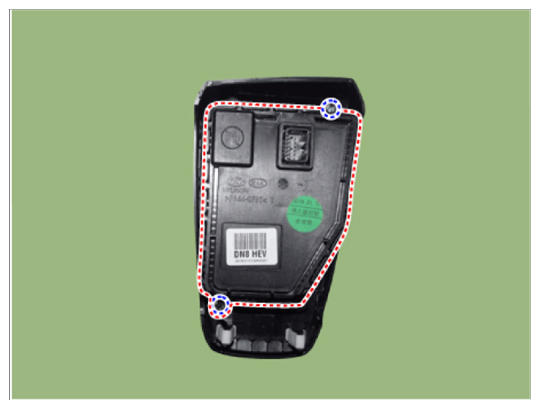

  3. Loosen the screw (B) and then removing the console upper cover (A).
    G14626366Courtesy of HYUNDAI MOTOR AMERICA
    G14626367Courtesy of HYUNDAI MOTOR AMERICA

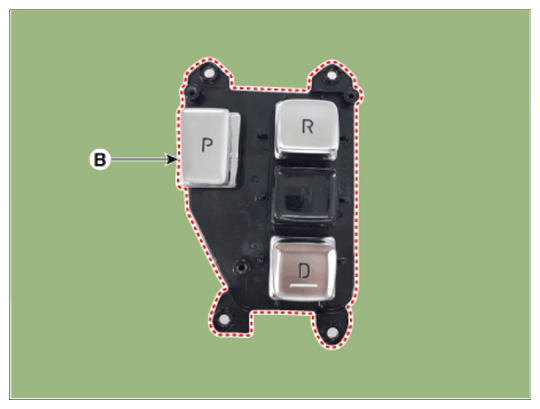

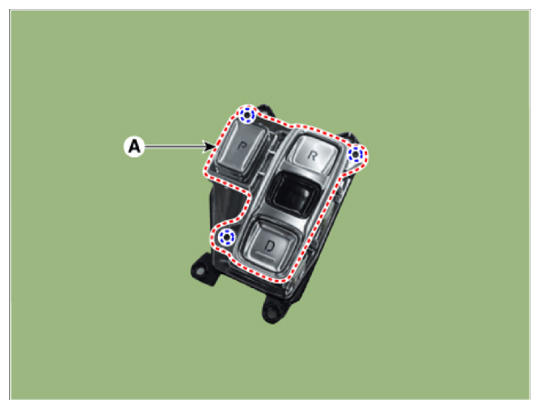

  4. Loosen the screw and then removing the upper cover (A) from shift button (B).
G14626368Courtesy of HYUNDAI MOTOR AMERICA
G14626369Courtesy of HYUNDAI MOTOR AMERICA
