Repair procedures: Installation

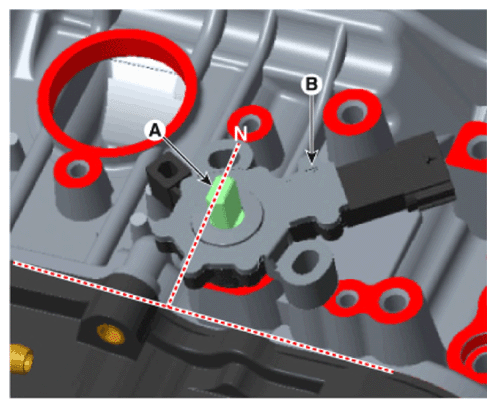

- Check that the shaft (A) is in the "N" position.
- Install the position sensor (B).

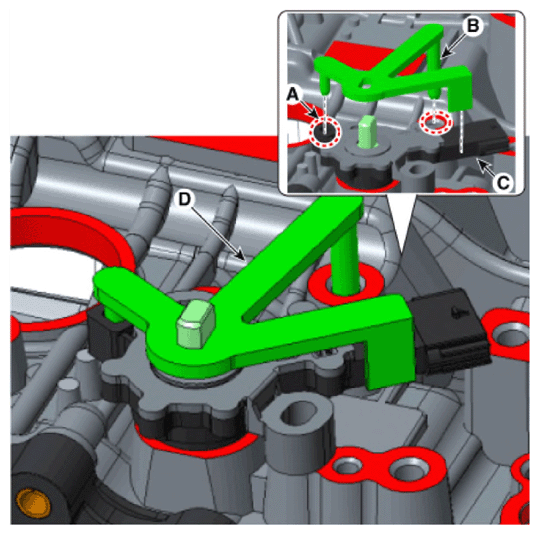

- Install the position sensor "N" fixing SST (No.:09459 - 4G200) (D) in the sensor (A), case pin (B) and anti-rotation guide (C).

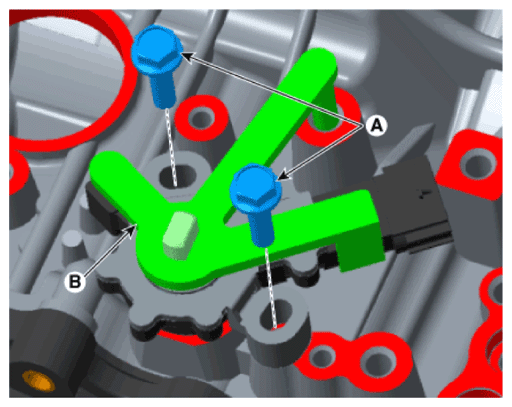

- Install the bolts (A) in the position sensor.
Tightening torque:
9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 28.9 - 33.9 lb-ft)
- Remove the position sensor "N" fixing SST (No.:09459 - 4G200) (B).

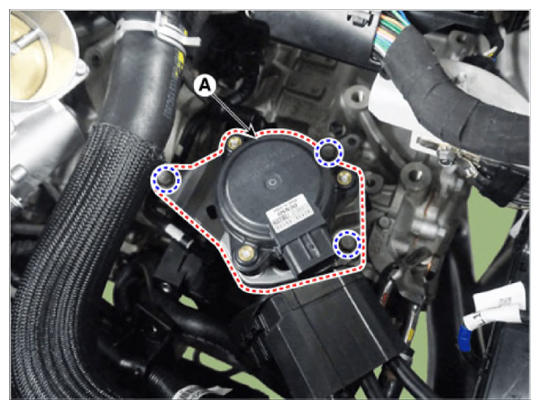

- Install the electronic shift actuator (A).

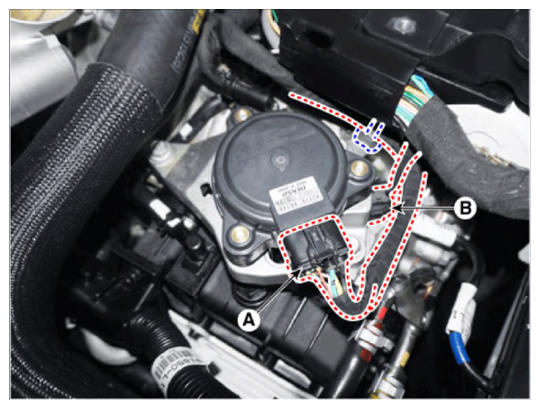

- Connect the electronic shift actuator connector (A) and then position sensor connector (B).
- Install the air cleaner assembly.

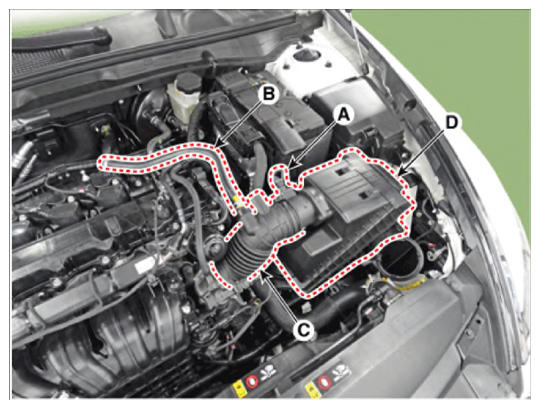

- Install the air cleaner assembly (D).
- Install the intake hose (C).
- Install the bleeder hose (B).
- Connect the Mass Air Flow Sensor (MAFS) connector (A).
Tightening torque:
Intake hose clamp: 2.9 - 4.9 N.m (0.3 - 0.5 kgf.m, 2.2 - 3.6 lb-ft)
Air cleaner mounting bolt: 7.8 - 9.8 N.m (0.8 - 1.0 kgf.m, 5.8 - 7.2 lb-ft)

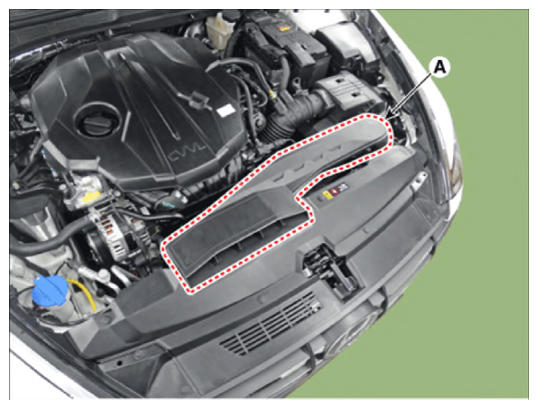

- Install the air duct (A).
- Connect the negative (-) battery cable.
- Check that operating surely at each range of the position sensor corresponding to each position of electric shift button.
