Components And Positions: Components

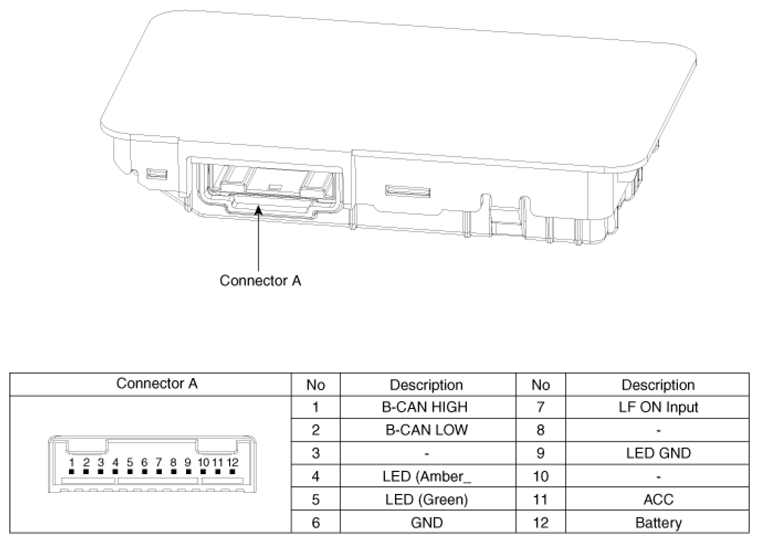

Fig 1: Wireless Power Charging Unit Connector End View And Terminal Description
G13033518Courtesy of HYUNDAI MOTOR AMERICA
