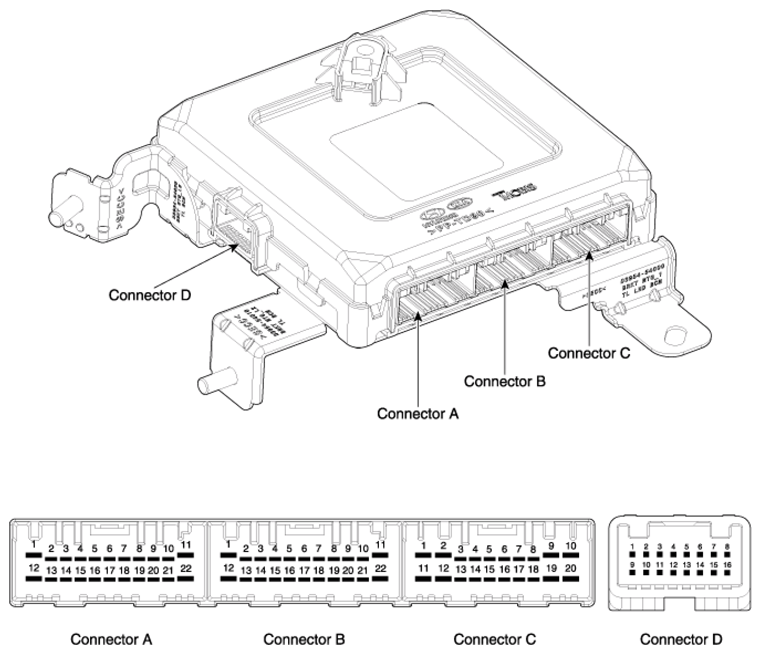

| 1 |
Batt (+) |
IGN |
- |
Power tailgate (option) |
| 2 |
IGN 2 |
PAS sensor |
Rear right seat belt indicator |
Heated steering switch |
| 3 |
Auto light power |
AIR BAG signal |
Rear left seat belt indicator |
- |
| 4 |
Fog lamp switch |
RPAS OFF switch |
Mirror folding relay |
- |
| 5 |
Light switch |
PAS/RPAS LIN |
Door unlock relay |
- |
| 6 |
Rear wiper switch |
Chassis CAN (Low) |
Safety power window Enable |
- |
| 7 |
Rear washer switch |
Chassis CAN (High) |
Wiper relay |
RPAS Buzzer |
| 8 |
Front washer switch |
- |
Wiper high & low relay |
Heated steering indicator |
| 9 |
Wiper motor position |
Body CAN (High) |
Heated steering output |
Sunroof open switch |
| 10 |
ATM solenoid |
Body CAN (Low) |
IGN2 |
PAS (option) |
| 11 |
RPAS sensor |
AV Tail lamp |
Ground |
Diagnosis |
| 12 |
IGN1 |
Heated steering NTC sensor |
Assist seat belt indicator |
GND |
| 13 |
ACC |
Key IN switch |
Rear center seat belt indicator |
- |
| 14 |
Auto light sensor_signal |
Key inter lock switch |
Key hole illumination |
- |
| 15 |
Auto light sensor_GND |
Rear defogger switch |
Mirror unfolding relay |
- |
| 16 |
Head lamp switch (High) |
LIN_Intrusion protection |
Start relay |
- |
| 17 |
Front wiper switch |
- |
Rear wiper relay |
|
| 18 |
Wiper speed |
RPAS OFF Indicator |
Head lamp washer relay |
| 19 |
Front wiper switch (Low) |
GND |
Puddle lamp |
| 20 |
Brake switch |
Security indicator |
Room lamp |
| 21 |
KEY solenoid |
Door lock relay |
|
| 22 |
Ground |
Door unlock relay |
