Interior 1 Antenna

NOTE:
  • Take care not to scratch the crash pad and related parts.
  1. Disconnect the negative (-) battery terminal.
  2. Remove the floor console front tray.

    (Refer to Body - "FLOOR CONSOLE ASSEMBLY ")

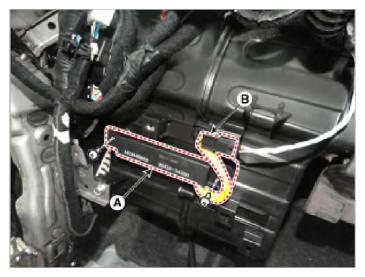

  3. Remove the interior 1 antenna (A) after loosening the mounting nuts and disconnecting the connector (B).
    G13054242Courtesy of HYUNDAI MOTOR AMERICA
