Components And Components Location: Components
WARNING:
This page is about a different variant/trim than selected.
LHD

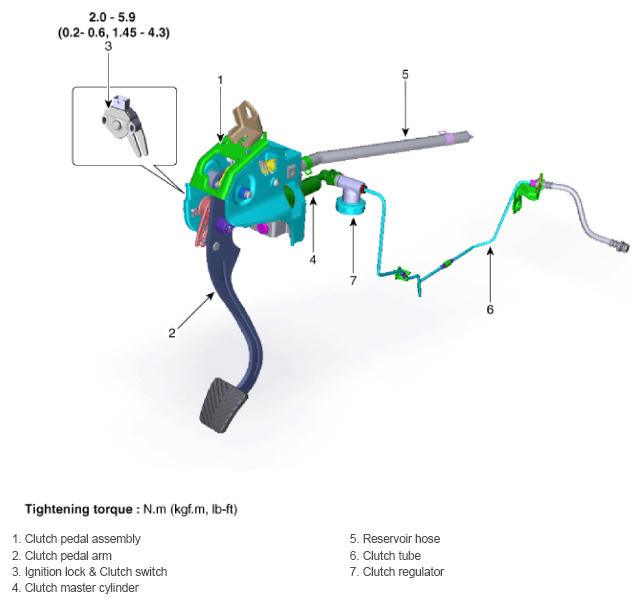

Fig 1: Clutch Regulator Components Location With Torque Specification (LHD)
Courtesy of HYUNDAI MOTOR AMERICA
RHD

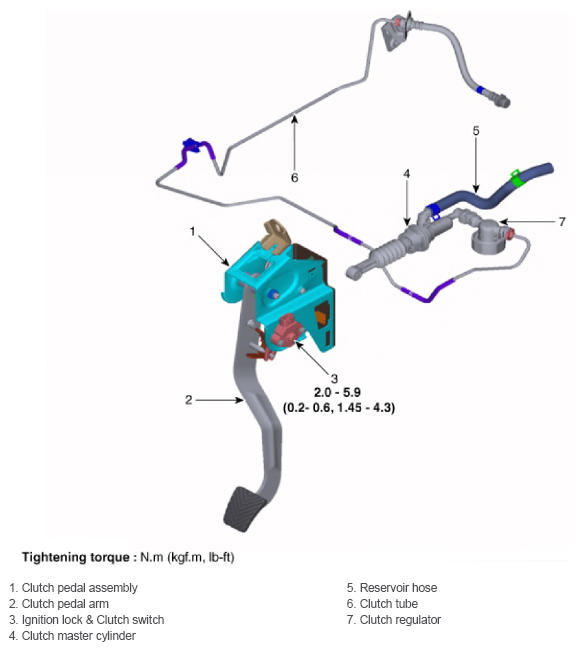

Fig 2: Clutch Regulator Components Location With Torque Specification (RHD)
Courtesy of HYUNDAI MOTOR AMERICA
