Components And Components Location: Components

WARNING: This page is about a different variant/trim than selected.

LHD

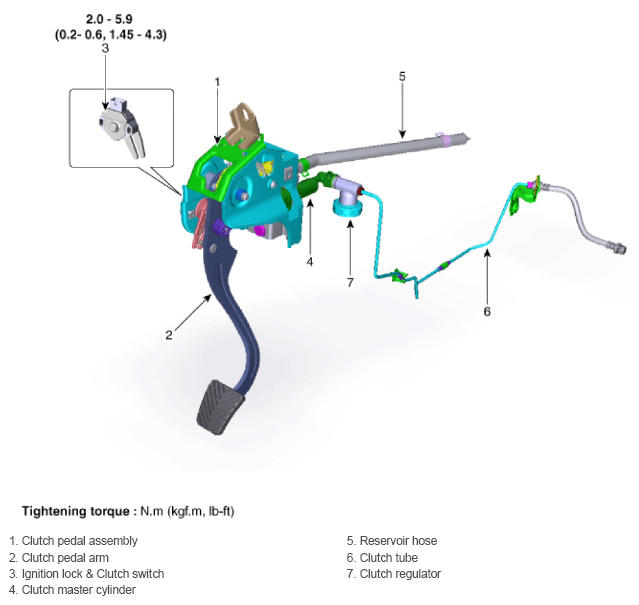

Fig 1: Clutch Tube Components Location With Torque Specification (LHD)
G13063968Courtesy of HYUNDAI MOTOR AMERICA

RHD

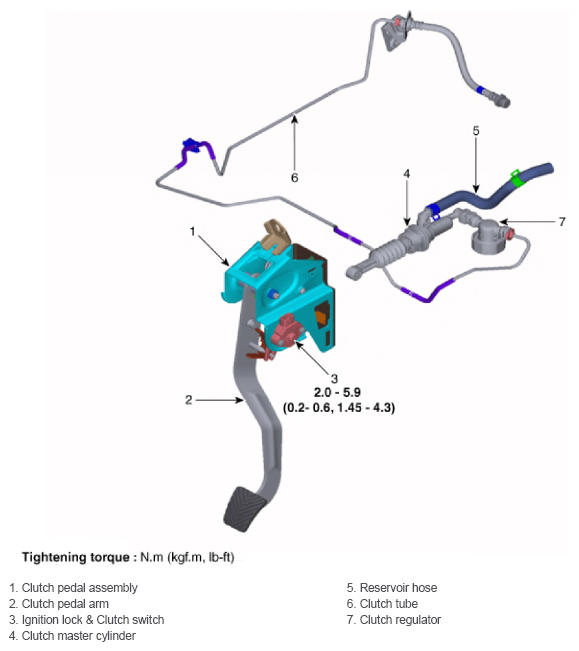

Fig 2: Clutch Tube Components Location With Torque Specification (RHD)
G13063969Courtesy of HYUNDAI MOTOR AMERICA
