Component Location

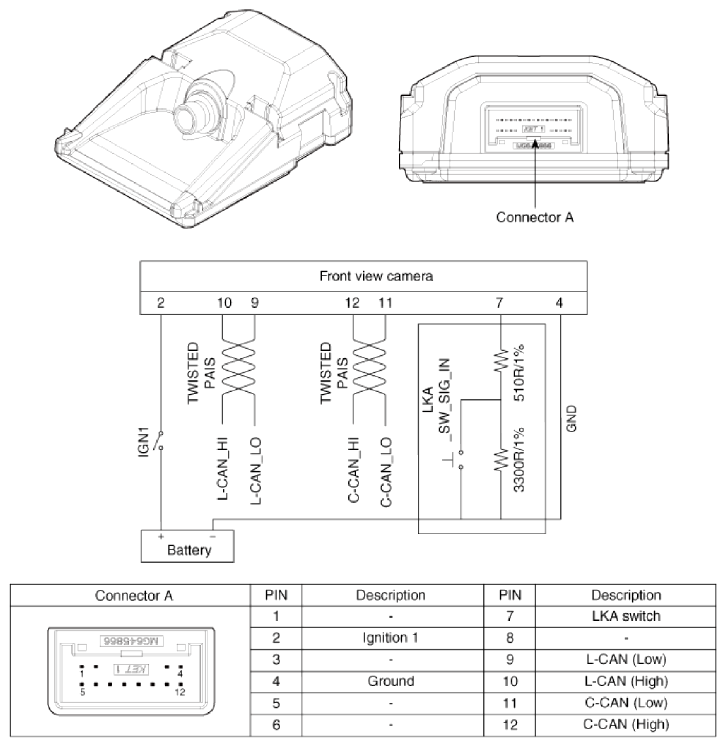

Fig 1: Front View Camera Unit Connector End View And Terminal Description
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
