Neutralization Status Check

  1. Connect the cable of GDS to the data link connector in driver side crash pad lower panel.

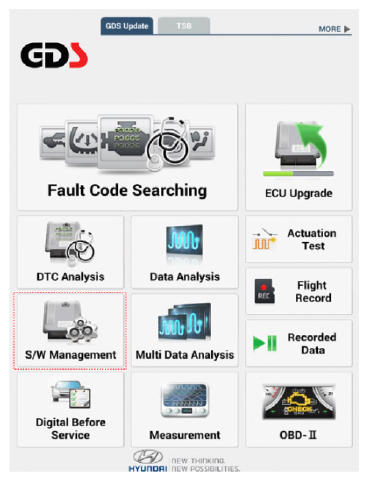

  2. Select the 'S/W Management' and 'Car model'.
    G15494918Courtesy of HYUNDAI MOTOR AMERICA

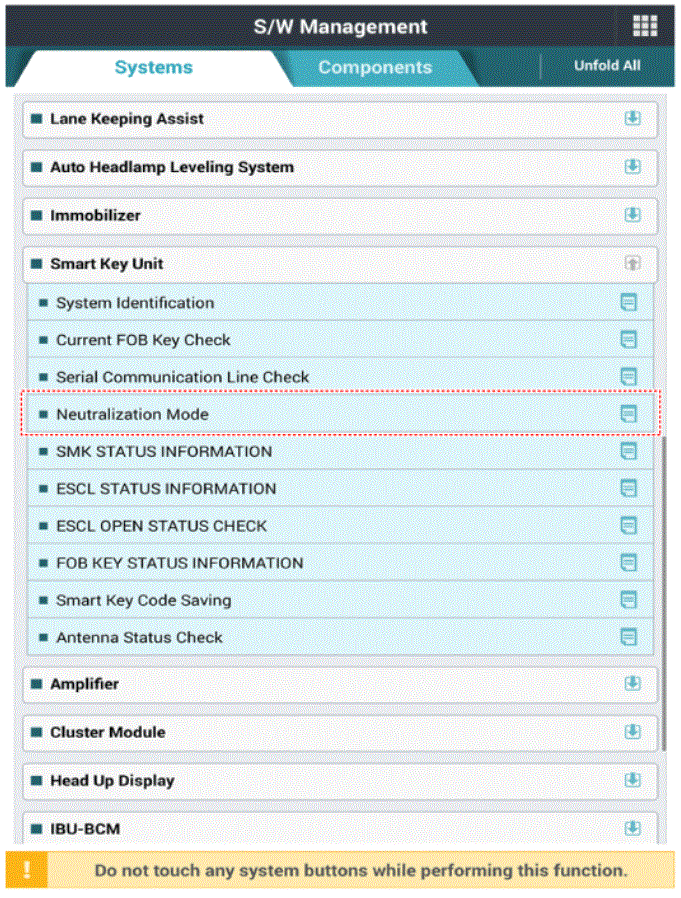

  3. Select the 'Smart Key Unit' and 'Neutralization Mode'.
    G15494919Courtesy of HYUNDAI MOTOR AMERICA

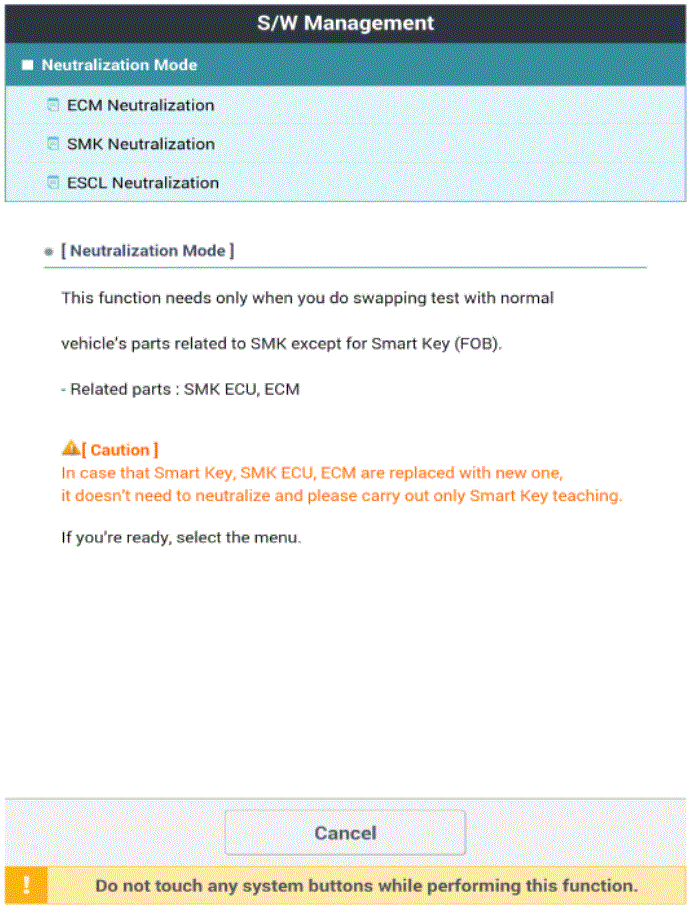

    G15494920Courtesy of HYUNDAI MOTOR AMERICA
