Repair Procedures: Removal

  1. Turn ignition switch OFF and disconnect the negative (-) battery cable.
  2. Remove the floor console upper cover assembly. (Refer to Body - "FLOOR CONSOLE ASSEMBLY ")

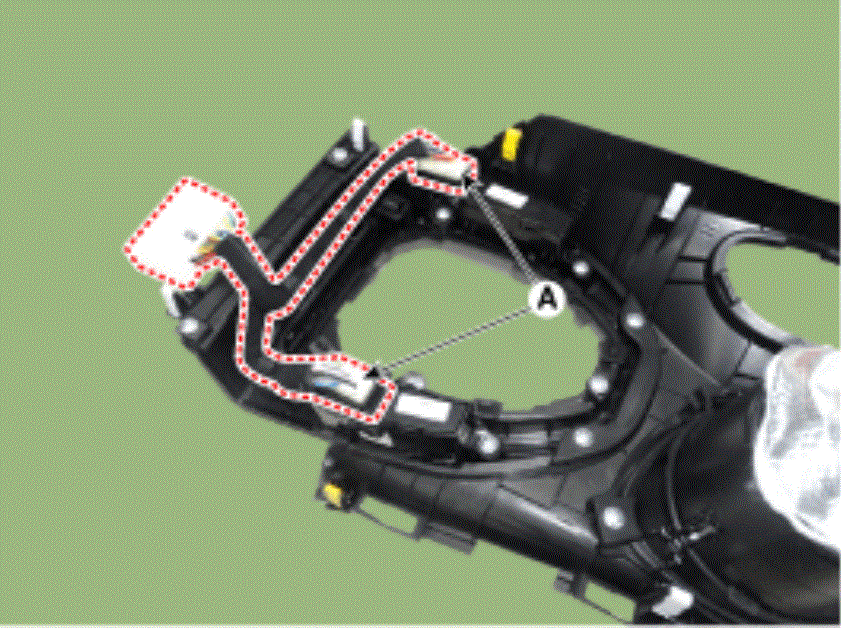

  3. Disconnect the console switch connector (A).
    G15483468Courtesy of HYUNDAI MOTOR AMERICA

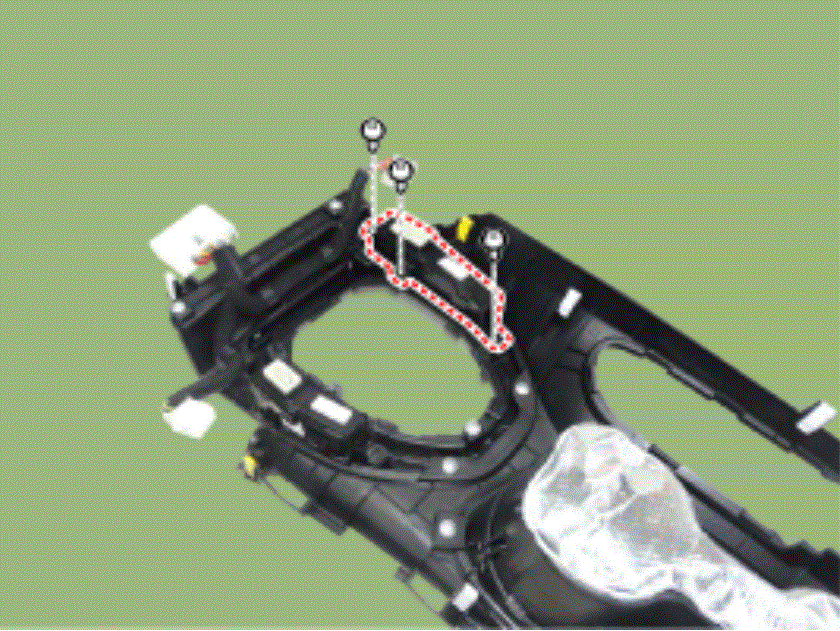

  4. Remove the console switch.
    G15483469Courtesy of HYUNDAI MOTOR AMERICA
