Brake (Stop Lamp) Switch

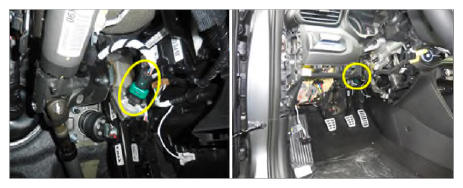

G15152157Courtesy of HYUNDAI MOTOR AMERICA

The Brake (Stop lamp) switch is used to judge whether the acceleration system is abnormal or not. The stop lamp switch has a duplex system (signals brake test or brake light) to memorize the abnormality when the signals of depressing and releasing the brake pedal are detected simultaneously.
