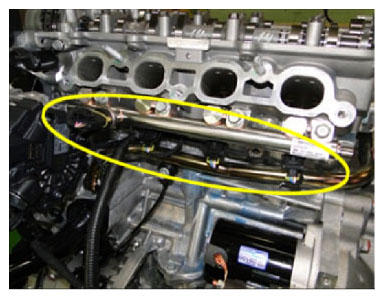

Component Location: Injector

G13056304Courtesy of KIA MOTORS AMERICA, INC.

Injectors jet out high pressure fuel calculated by ECM to each cylinders. Direct and separated injections improve fuel efficiency and engine power.
