Repair Procedures: Replacement

CAUTION:
  • Put on gloves to prevent hand injuries.
NOTE:
  • When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
  • Use a plastic panel removal tool to remove interior trim pieces without marring the surface.
  • Take care not to bend or scratch the trim and panels.
  1. Remove the front seat back cover.

    (Refer to Front Seat - "FRONT SEAT BACK COVER ")

  2. Remove the front seat cushion cover.

    (Refer to Front Seat - "FRONT SEAT CUSHION COVER ")

  3. Remove the SAB module.

    (Refer to Restraint - "SIDE AIRBAG (SAB) MODULE ")

  4. Remove the lumbar support assembly.

    (Refer to Body Electrical System - "LUMBAR SUPPORT UNIT ")

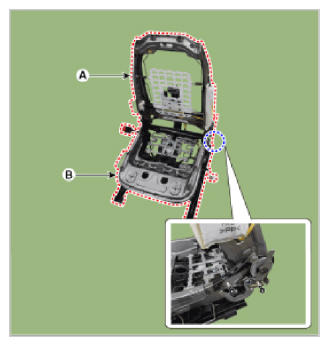

  5. After loosening the mounting bolts, detach the front seat back frame assembly (A) from the front seat cushion frame assembly (B).

    Tightening torque:

    58.8 - 67.13 N.m (6.0 - 6.85 kgf.m, 43.4 - 49.53 llb-ft)

    G13054054Courtesy of HYUNDAI MOTOR AMERICA
  6. To install, reverse removal procedure.

    Information

    • For the seat equipped with side airbag, remove the side airbag from the seat frame assembly.

      (Refer to Restraint - "SIDE AIRBAG (SAB) MODULE ")

    • Before service, be fully aware of precautions and service procedure relevant to air bag.

      (Refer to Restraint - "SIDE AIRBAG (SAB) MODULE ")
