Repair Procedures: Removal
- Turn ignition switch OFF and disconnect the negative (-) battery cable.
- Remove the battery and battery tray.
(Refer to Engine Electrical System - "BATTERY ")
- In case of diesel vehicle, remove the fuel filter.

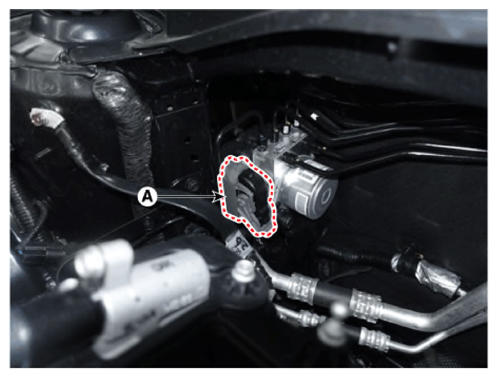

- Pull up the lock of the ABS control module connector and then disconnect the connector (A).

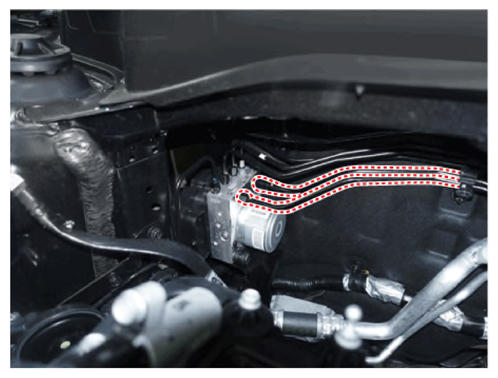

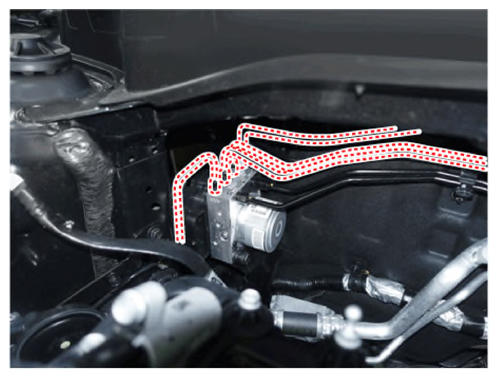

- Separate the brake tubes from the ABS by unlocking the nuts (6-ea) couter-clockwise using a spanner.
Tightening torque:
12.7 - 16.7 N.m (1.3 - 1.7 kgf.m, 9.4 - 12.3 lb-ft)
Tightening torque:
18.6 - 22.6 N.m (1.9 - 2.3 kgf.m, 13.7 - 16.6 lb-ft)

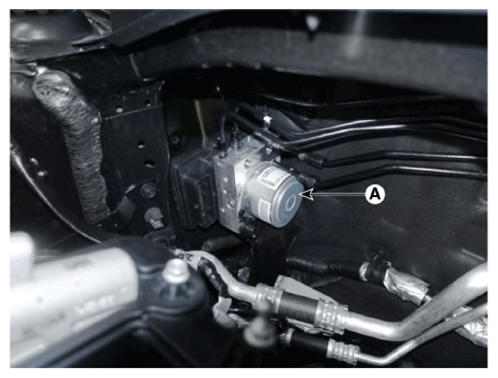

- Loosen the ABS control module mounting nut (A) and then remove the ESP control module from the vehicle.
Tightening torque:
16.7 - 25.5 N.m (1.7 - 2.6 kgf.m, 12.3 - 18.8 lb-ft)

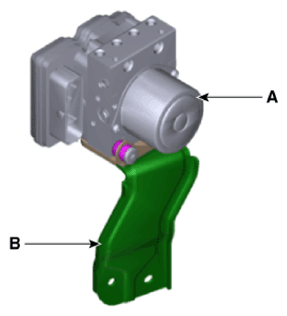

- Separate the bracket (B) after remove the mounting bolt from the ABS control module (A).
