DTC P2237-00: O2 Sensor Pumping Current Circuit/Open (Bank 1 Sensor 1)
>>
Troubleshooting
>>

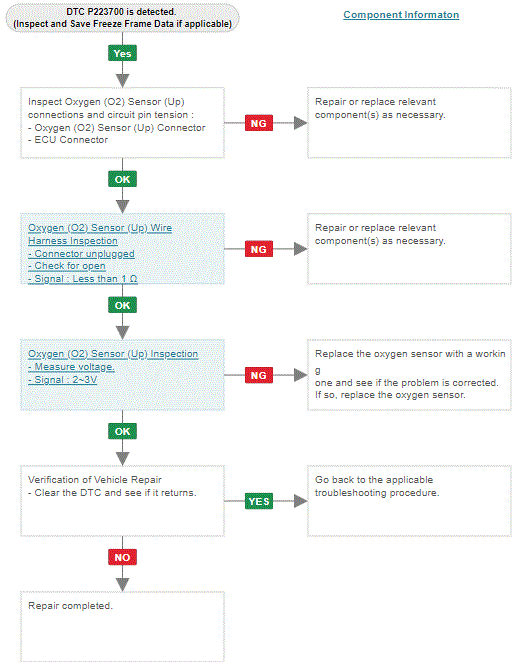

Diagnostic Flowchart
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Diagnostic Flowchart
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
