Engine Control System Diagnosis (6 Of 6)
>>
DTC P2270-00: O2 Sensor Stuck Lean Bank 1 Sensor 2
>>
Troubleshooting
>>
Diagnostic Flowchart
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.

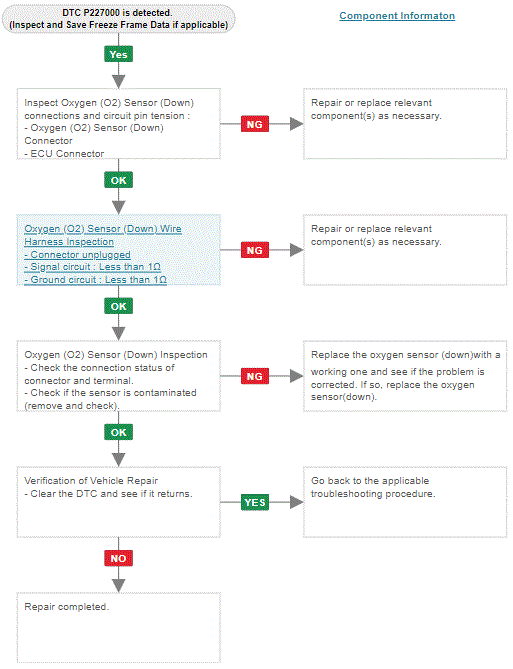

Diagnostic Flowchart
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
