Repair Procedures: Installation

  1. Install in the reverse order of removal.

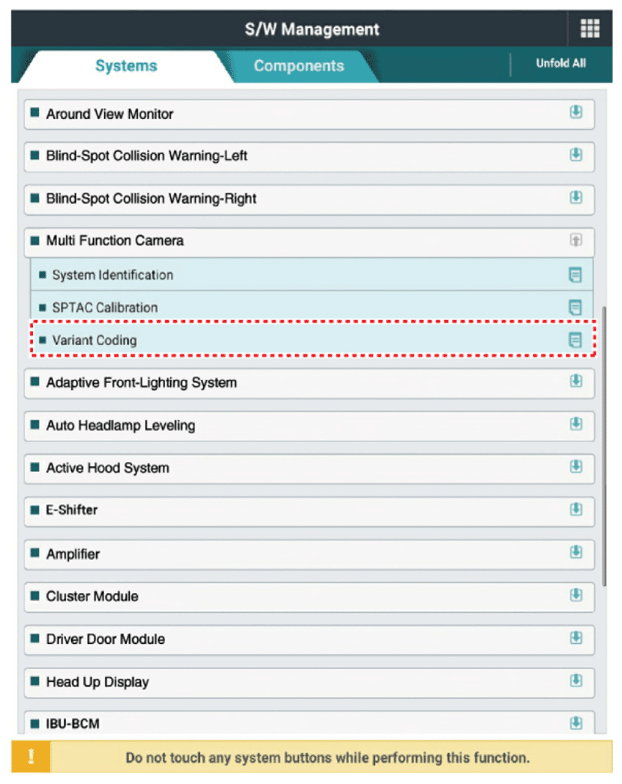

  2. When if replacing the front view camera with a new one, perform the "Variant Coding" procedure by using the Diagnostic Tools.
    G14702669Courtesy of HYUNDAI MOTOR AMERICA
  3. Perform the front view camera unit calibration. (Refer to Repair procedures - "SERVICE POINT TARGET AUTO CALIBRATION (SPTAC) ")
