Repair Procedures: Removal

Disconnect the negative (-) battery terminal.

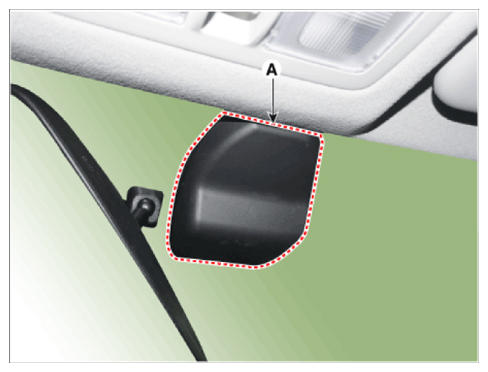

Remove the front view camera cover (A).

Courtesy of HYUNDAI MOTOR AMERICA

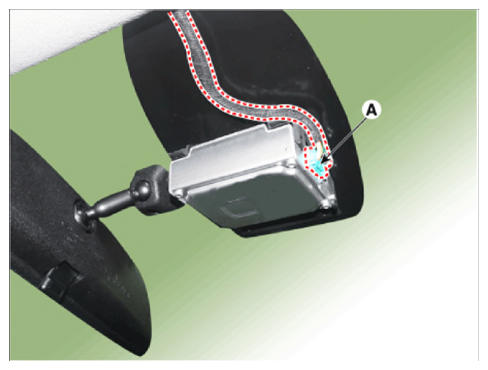

Separate the front view camera connector (A).

Courtesy of HYUNDAI MOTOR AMERICA

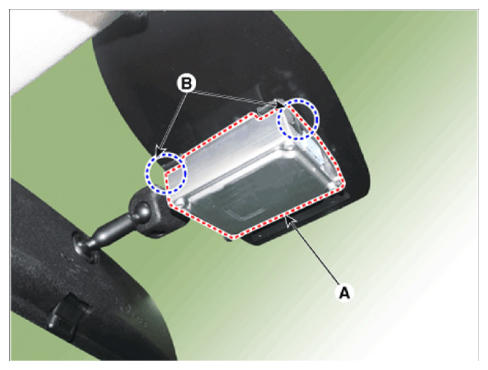

After passing the fixing point (B) of the coupler, remove the front view camera (A).

Courtesy of HYUNDAI MOTOR AMERICA
CAUTION:
- Be careful not to break any of the anchor points (B).
