Repair Procedures: Installation

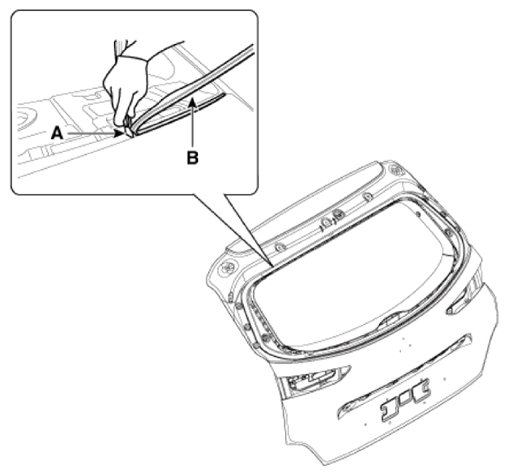

Using a cutting knife (A), remove the remaining sealant (B) on the body panel.
CAUTION:
- Put on gloves to protect your hands.
Courtesy of HYUNDAI MOTOR AMERICA

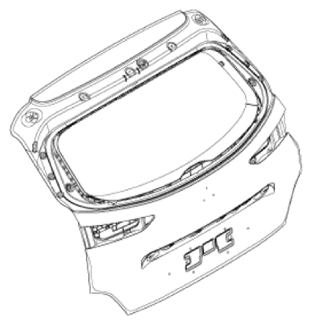

Apply the body primer to the bonding surface of body panel.
CAUTION:
- Be careful not to touch the surface covered with the primer because touching it may lead to water leaks after installing the tailgate window glass.
- Do not apply the body primer to the glass.
- Remove any foreign materials from the primer-covered surface.
Courtesy of HYUNDAI MOTOR AMERICA

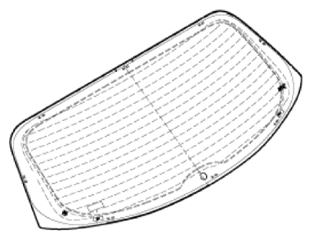

Apply the glass primer to the outer edge of tailgate window glass.
CAUTION:
- Be careful not to touch the surface covered with the primer because touching it may lead to water leaks after installing the tailgate window glass.
- Remove any foreign materials from the primer-covered surface.
Courtesy of HYUNDAI MOTOR AMERICA

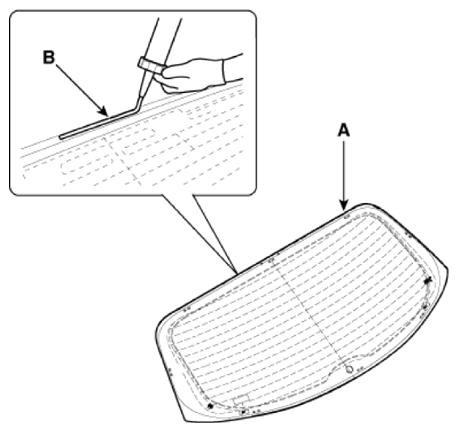

Using a sealant gun, apply the sealant (B) to the edge of rear tailgate window glass (A).

Courtesy of HYUNDAI MOTOR AMERICA

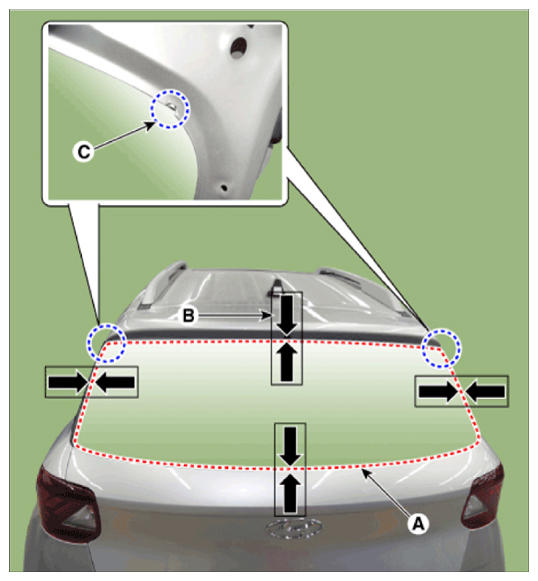

Using the glass holder, adjust the tailgate window glass (A) to fit the alignment marks (B) on the body and lightly push the tailgate window glass to make the edges fully seated on the bonding surface of body.
NOTE:
- When installing the tailgate window glass (B), be sure to fit the protruding part (C) on the reverse side of the glass into the groove on the body frame.
Courtesy of HYUNDAI MOTOR AMERICA
To make sure that the applied sealant is completely hardened, leave the car on a flat surface for at least 3 to 4 hours after installing the tailgate window glass.
Information
- If driving the car is inevitable, drive at a low speed for at least 8 hours.
- Advise the driver to avoid aggressive driving or driving on rough roads for 2-3 days after installing the tailgate window glass.
Conduct a leak testing.
Information
- The leak testing shall be conducted at least 4 hours after the tailgate window glass installation is completed.
- Do not directly spray the high-pressure water to the joint area.
Remove the rear wiper.
(Refer to Body Electrical System - "REAR WIPER ")
Remove the high mounted stop lamp
(Refer to Body Electrical System - "HIGH MOUNTED STOP LAMP ")
Install the tailgate trim.
(Refer to Tailgate - "TAILGATE TRIM ")
