Repair Procedures: Removal
- Turn ignition switch OFF and disconnect the negative (-) battery cable.

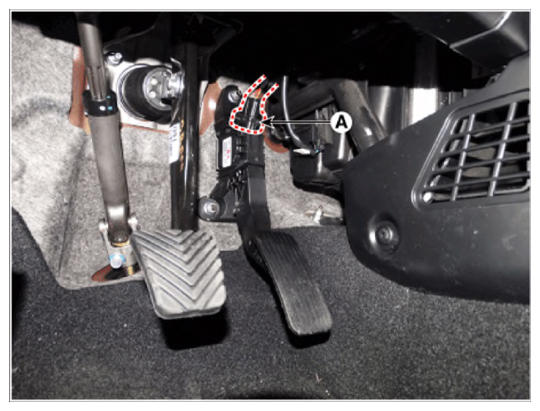

- Disconnect the accelerator position sensor connector (A).

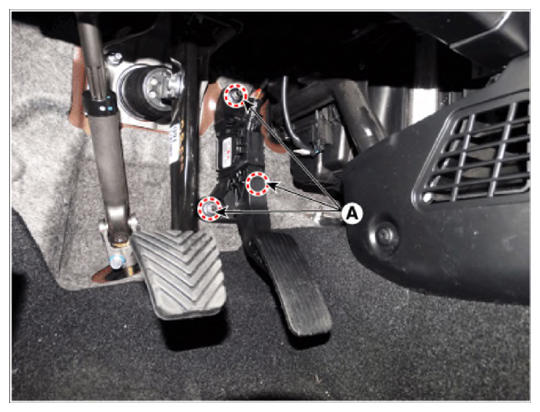

- Remove the installation nuts (A), and then remove the accelerator pedal module.
Accelerator pedal module installation nut:
12.7 - 15.7 N.m (1.3 - 1.6 kgf.m, 9.4 - 11.6 lb-ft)
