Engine Control System Diagnosis (2 Of 6)
>>
DTC P013F-00: O2 Sensor Delayed Response - Lean To Rich Bank 1 Sensor 2
>>
Troubleshooting
>>
Diagnostic Flowchart
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.

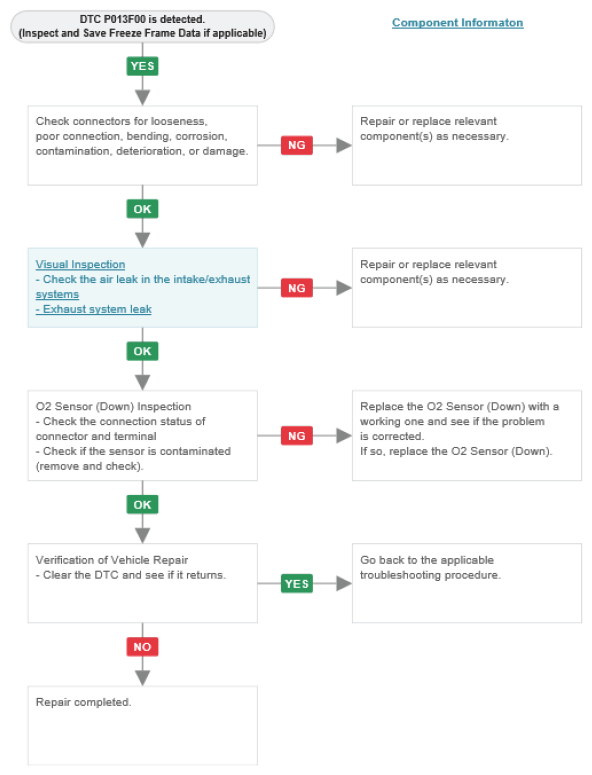

Diagnostic Flowchart
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
