Repair Procedures: Removal
- Turn ignition switch OFF and disconnect the negative (-) battery cable.

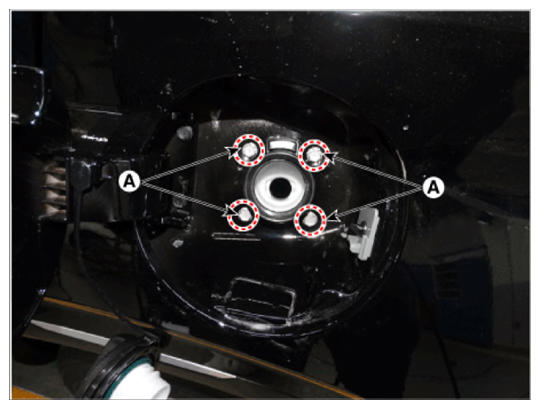

- Open the fuel filler door and unfasten the filler-neck assembly mounting bolt (A).
Filler-neck assembly bracket installation bolt:
7.8 - 11.8 N.m (0.8 - 1.2 kgf.m, 5.8 - 8.7 lb-ft)
- Lift the vehicle.
- Remove the rear-LH wheel, tire, and the inner wheel house.

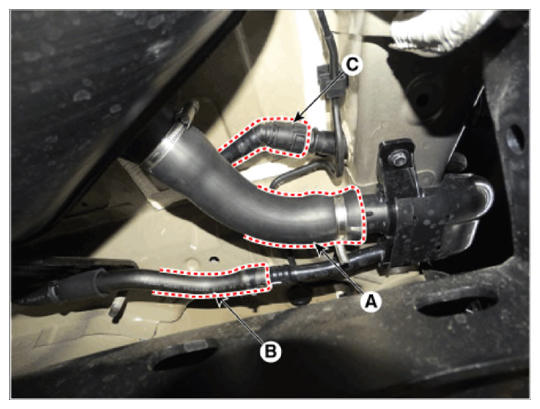

- Disconnect the fuel filler hose (A).
- Disconnect the ventilation hose (B) and leveling hose quick-connector (C).

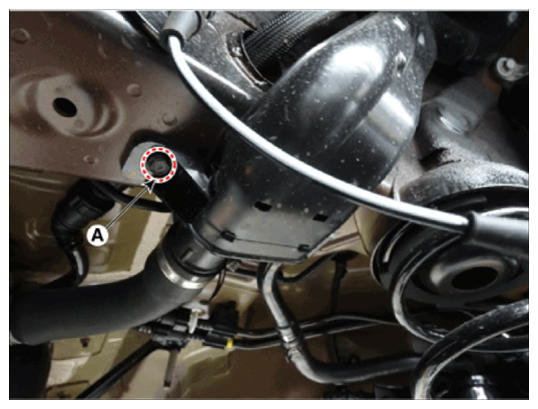

- Remove the filler-neck assembly from the vehicle after removing the bracket mounting bolt (A).
Filler-neck assembly installation bolt:
7.8 - 11.8 N.m (0.8 - 1.2 kgf.m, 5.8 - 8.7 lb-ft)
