Repair Procedures: Removal

  1. Remove the fuel pump. (Refer to "FUEL PUMP ")

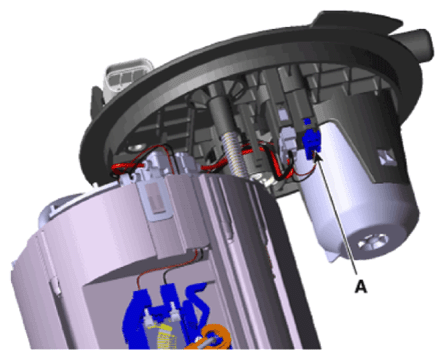

  2. Disconnect the fuel sender connector (A).
    G14077069Courtesy of HYUNDAI MOTOR AMERICA

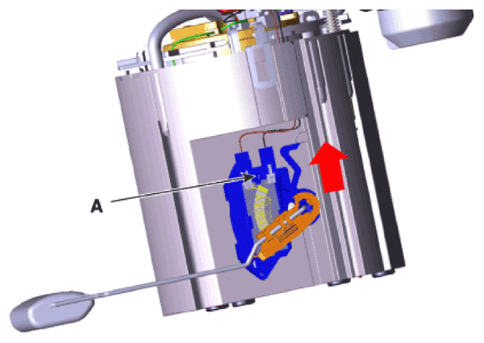

  3. Remove the fuel sender (A) in the direction of an arrow.
    G14077070Courtesy of HYUNDAI MOTOR AMERICA

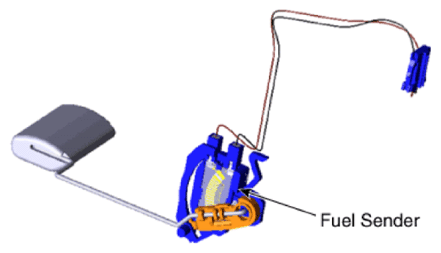

    G14077071Courtesy of HYUNDAI MOTOR AMERICA
