Accent SE, Automatic CVT Trans
>>
Repair and Diagnosis
>>
Transmission
>>
Automatic Trans
>>
Intelligent Variable Transmission (IVT) Control System
>>
Position Switch
>>
Components And Components Location
>>
Component Location
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Component Location

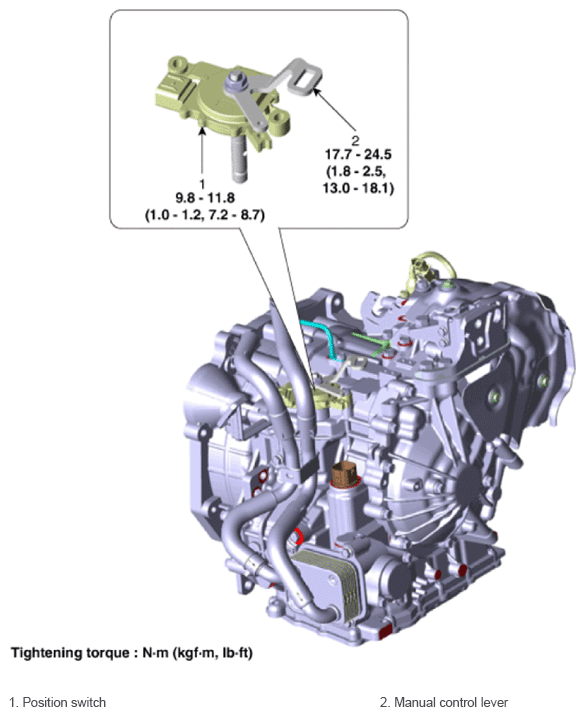

Fig 1: Position Switch Components Location With Torque Specification
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
