Repair Procedures: Inspection

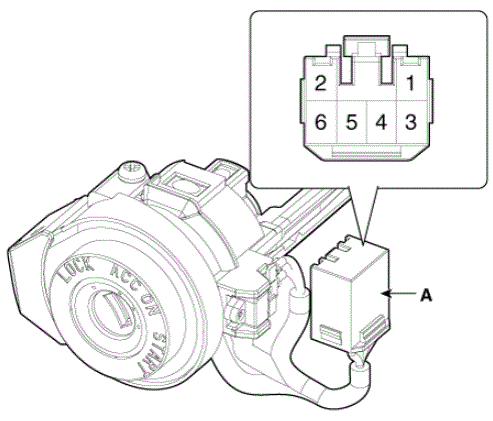

  1. Disconnect the ignition switch connector (A) and key warning switch connector (B) from under the steering column.
    G16179144Courtesy of HYUNDAI MOTOR AMERICA

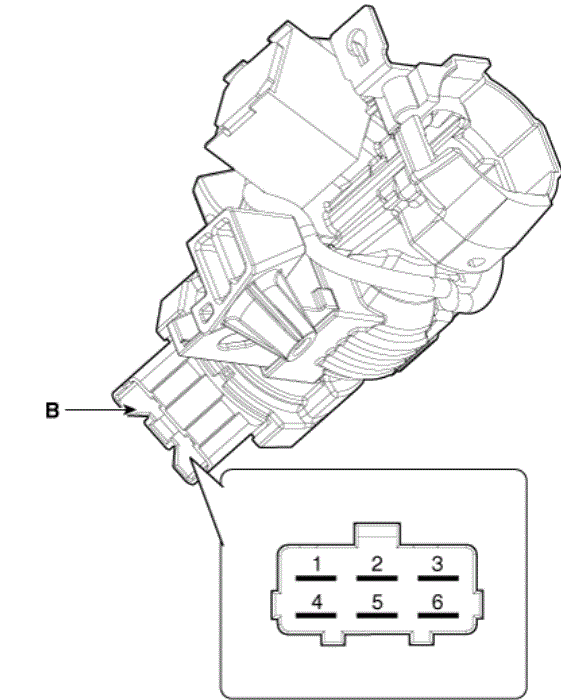

    G16179145Courtesy of HYUNDAI MOTOR AMERICA

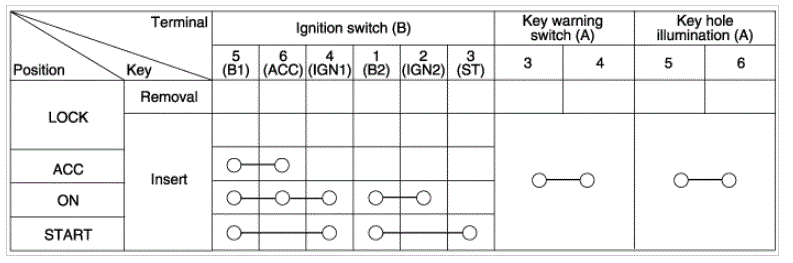

  2. Check for continuity between the terminals.
  3. If continuity is not specified, replace the switch.
G16179146Courtesy of HYUNDAI MOTOR AMERICA
