Bank 1/Exhaust

  1. Disconnect the battery (-) terminal.
  2. Remove the air cleaner.

    (Refer to Engine Mechanical System - "AIR CLEANER ")

  3. Remove the battery.

    (Refer to Engine Electrical System - "BATTERY ")

  4. Remove the EWGA.

    (Refer to Electric WGT Control Actuator - "REPAIR PROCEDURES ")

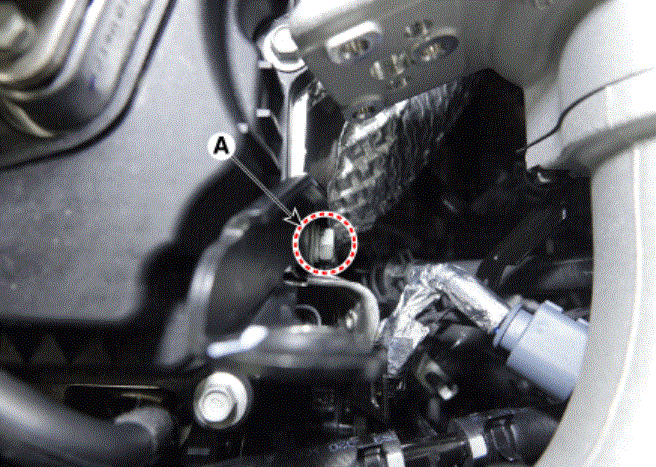

  5. Seperate the engine hanger & service cover, after loosening the enigne hanger mounting bolt (A).
    G16176884Courtesy of HYUNDAI MOTOR AMERICA

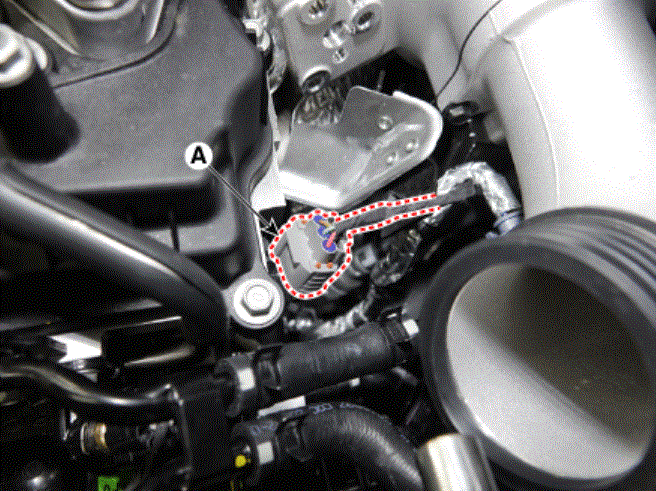

  6. Disconnect the camshaft position sensor connector (A).
    G16176885Courtesy of HYUNDAI MOTOR AMERICA

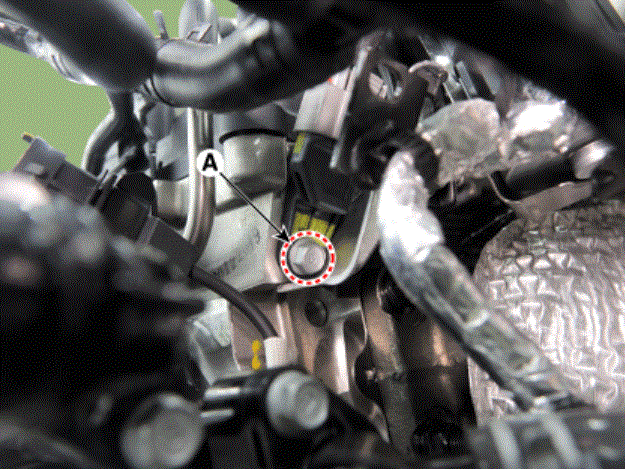

  7. Remove the camshaft position sensor (A), after loosening the mounting bolt.

    Tightening Torque:

    9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb-ft)

    G16176886Courtesy of HYUNDAI MOTOR AMERICA
