Repair Procedures: Removal
- Disconnect the battery (-) terminal.
- Remove the engine cover.
(Refer to Engine Mechanical System - "ENGINE COVER ")
- Remove the ignition coil.
(Refer to Ignition System - "IGNITION COIL ")

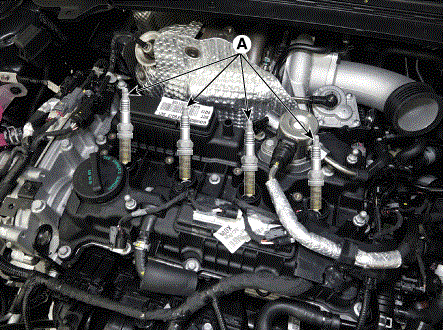

- Using a spark plug wrench, remove the spark plug (A).
Tightening torque:
14.7 - 24.5 N.m (1.5 - 2.5 kgf.m, 10.8 - 18.1 Ib.ft)
