Repair Procedures: Installation

CAUTION:
  • Before installing, check the shift lever and manual control lever are positioned at "N" position (A).

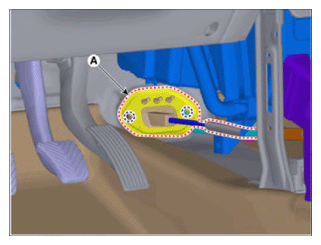

  1. Install the retainer (A) and then tighten the nut.

    Tightening torque:

    11.8 - 14.7 N.m (1.2 - 1.5 kgf.m, 8.7 - 10.8 lb-ft)

    G16177353Courtesy of HYUNDAI MOTOR AMERICA

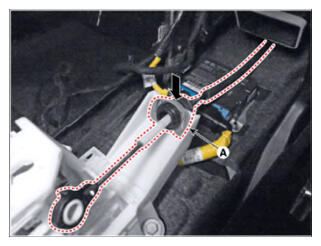

  2. Install the shift cable socket (A)
    G16177354Courtesy of HYUNDAI MOTOR AMERICA

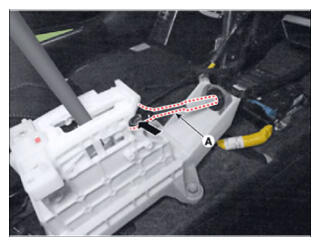

  3. Install the shift cable end (A).
    G16177355Courtesy of HYUNDAI MOTOR AMERICA
    CAUTION:

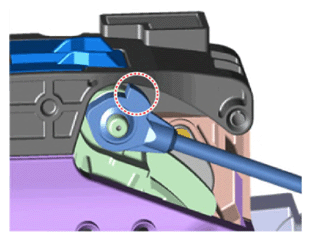

    • When assembling shift cable, the projection (A) must face upwards.
      G16177356Courtesy of HYUNDAI MOTOR AMERICA

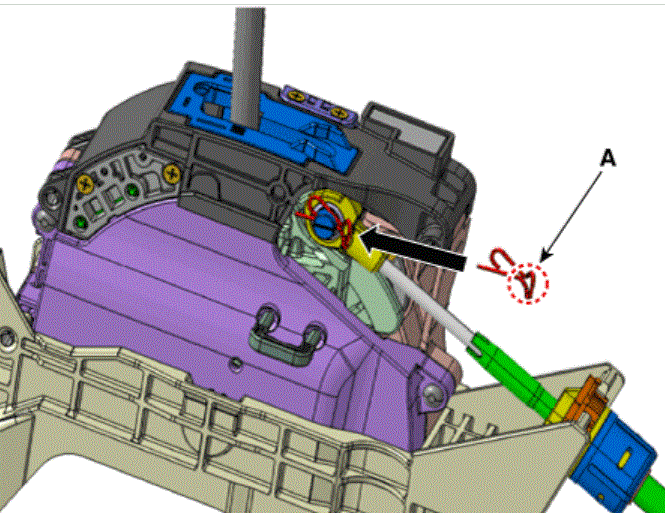

    • When assembling the snap pin, be careful about the correct direction.
      • The band portion (A) must point to the front of the vehicle.
      • The band portion (A) must point outwards.
      G16177357Courtesy of HYUNDAI MOTOR AMERICA

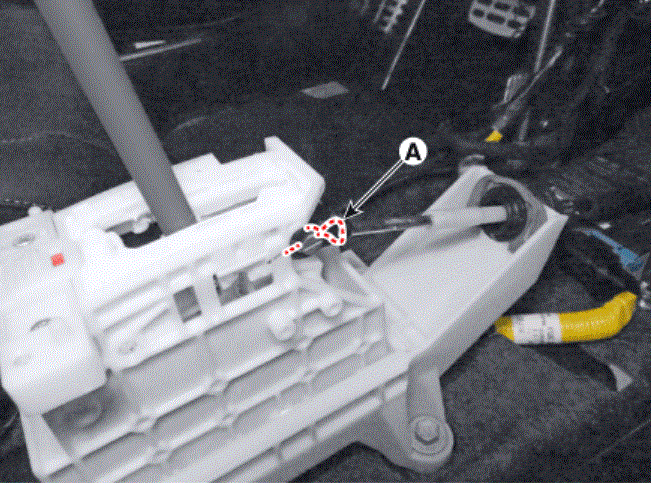

  4. Install the snap pin (A).
    G16177358Courtesy of HYUNDAI MOTOR AMERICA

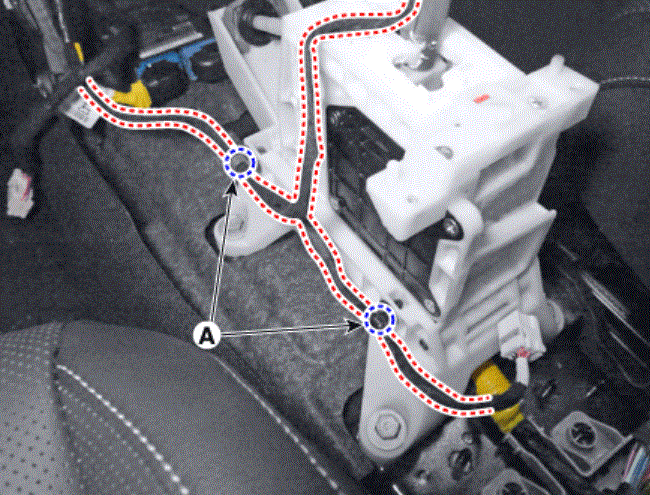

  5. Install the wiring clip (A).
    G16177359Courtesy of HYUNDAI MOTOR AMERICA

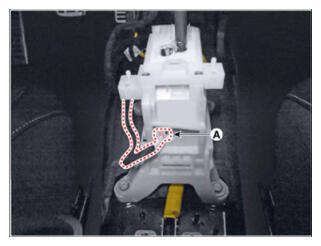

  6. Install the connector (A).
    G16177360Courtesy of HYUNDAI MOTOR AMERICA

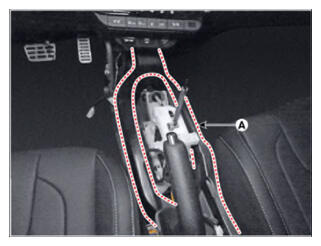

  7. Install the floor console air duct (A).
    G16177361Courtesy of HYUNDAI MOTOR AMERICA

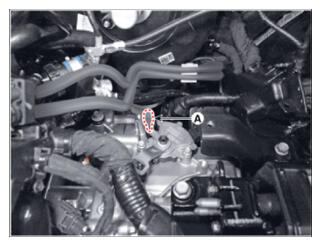

  8. Install the position switch neutral fixed pin (SST No.:09480-A3800) (A) to the aligned hole.
    G16177362Courtesy of HYUNDAI MOTOR AMERICA

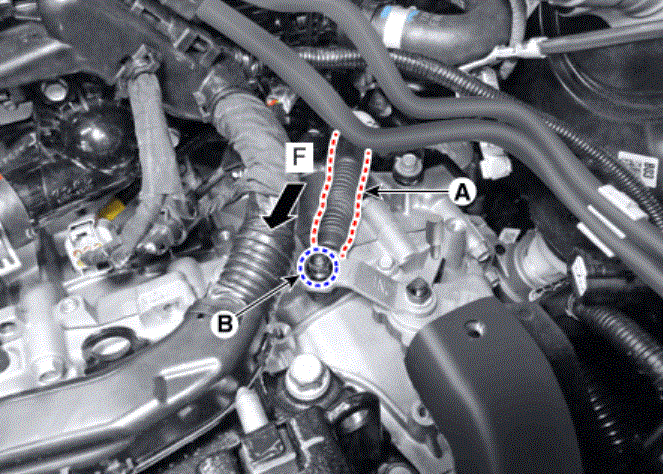

  9. Push shift cable (A) lightly to "F" direction shown to eliminate free play of shift cable.

    Tighten the nut (B) with the specified torque.

    Tightening torque:

    9.8 - 14.7 N.m (1.0 - 1.4 kgf.m, 7.2 - 10.8 lb-ft)

    G16177363Courtesy of HYUNDAI MOTOR AMERICA

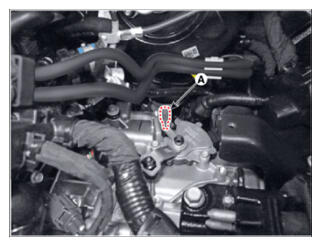

  10. Remove the Insert the position switch neutral fixed pin (SST No.: 09480-A3800) (A).
    G16177364Courtesy of HYUNDAI MOTOR AMERICA
  11. Install the floor console.

    (Refer to Body (Interior and Exterior - "FLOOR CONSOLE ")

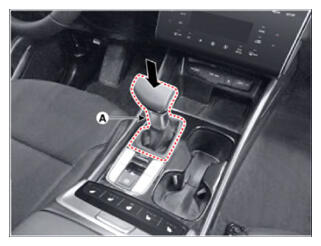

  12. Install the shift lever knob & boots (A).
    G16177365Courtesy of HYUNDAI MOTOR AMERICA
  13. Install the battery and battery tray.

    (Refer to Engine Electrical System - "BATTERY and BATTERY TRAY ")

  14. Install the air cleaner assembly and air duct.

    (Refer to Engine Mechanical System - "AIR CLEANER ASSEMBLY ")

    CAUTION:
    • Check that operating surely at each range of the position switch corresponding to each position of shift lever.
