Repair Procedures: Installation

NOTE:

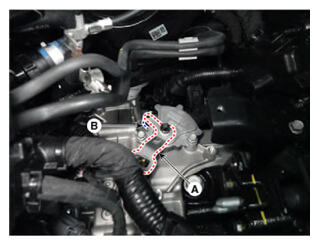

  • Before installing, align the position switch manual control lever (A) and the "N"position guide (B).
    G16177339Courtesy of HYUNDAI MOTOR AMERICA
  • When installing the old shift lever, check the lever is positioned the lever at "N" position.
  • When installing the new shift lever, check the lever is equipped with the "N" position fixed pin (A).
    G16177340Courtesy of HYUNDAI MOTOR AMERICA
  1. Install in the reverse order of removal.
    CAUTION:

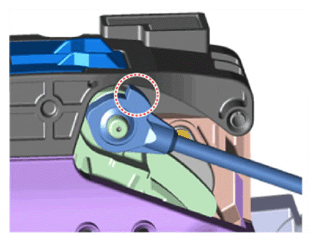

    • When assembling shift cable, the projection must face upwards.
      G16177341Courtesy of HYUNDAI MOTOR AMERICA

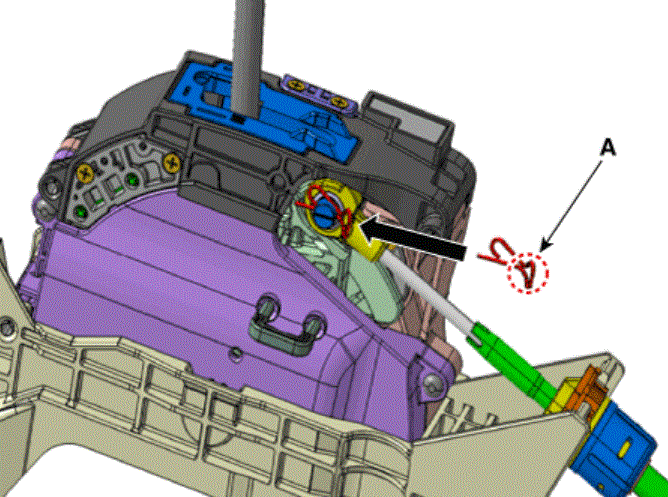

    • When assembling the snap pin, be careful about the correct direction.
      • The band portion (A) must point to the front of the vehicle.
      • The band portion (A) must point outwards.
      G16177342Courtesy of HYUNDAI MOTOR AMERICA
    • When installing the new shift lever, install the shift cable and then remove the "N" position fixed pin (A).
      G16177343Courtesy of HYUNDAI MOTOR AMERICA
