Components & Components Location: Components

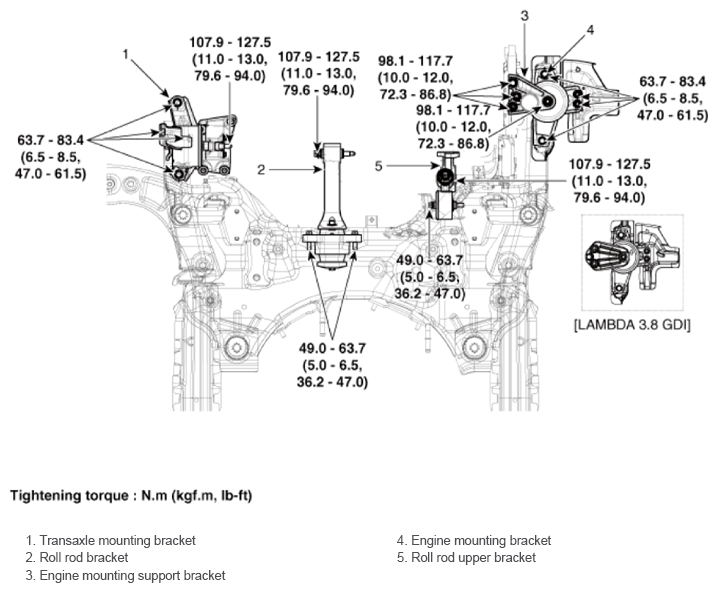

Fig 1: Engine Mounting Components Location With Torque Specification
G14423112Courtesy of HYUNDAI MOTOR AMERICA

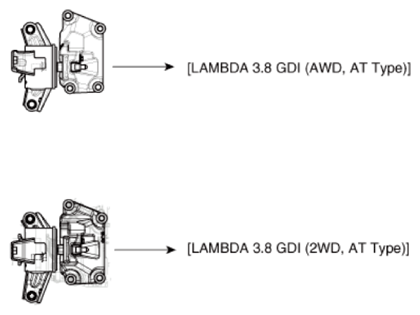

G14423113Courtesy of HYUNDAI MOTOR AMERICA
