Repair Procedures: Adjustment

  1. Turn the ignition switch OFF.
  2. Connect the diagnostic tool to Data Link Connector (DLC).
  3. Turn the ignition switch ON.
  4. Select "Vehicle, Model Year, Engine, System".
  5. Select "CVVD Intake Adaption".

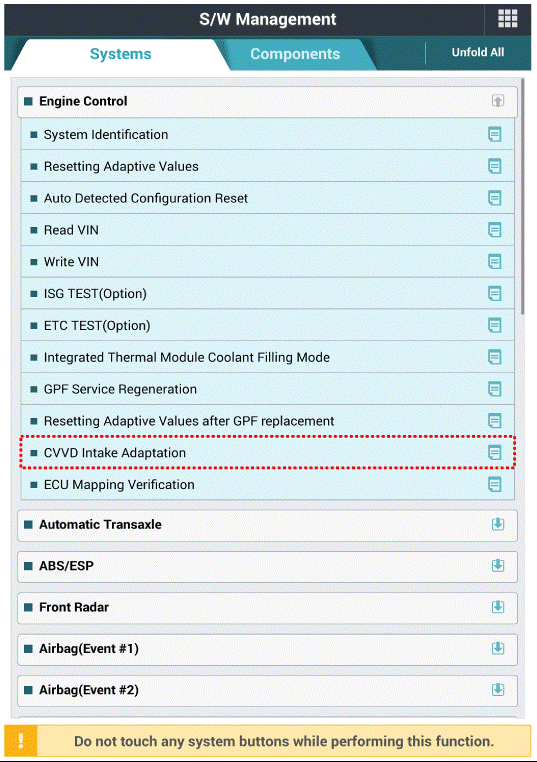

    G16120108Courtesy of HYUNDAI MOTOR AMERICA
  6. To perform the "CVVD Learning," refer to the diagnostic tool.

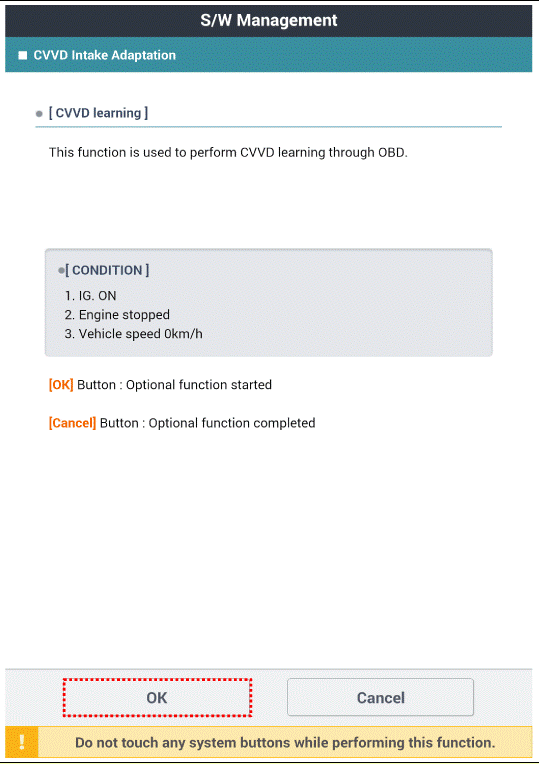

G16120109Courtesy of HYUNDAI MOTOR AMERICA
G16120110Courtesy of HYUNDAI MOTOR AMERICA
