Repair Procedures: Removal

  1. Turn the ignition switch OFF and disconnect the battery negative (-) cable.
  2. Remove the knock sensor (A) after loosening the mounting bolt.

    Tightening Torque:

    18.6 - 23.5 N.m (1.9 - 2.4 kgf.m, 13.7 - 17.3 lb-ft)

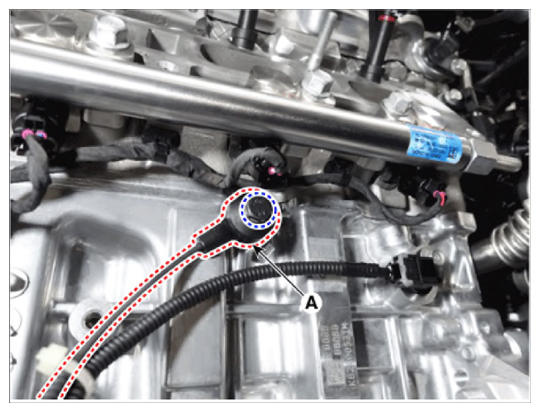

    Fig 1: Knock Sensor (KS) Components Location
    G14676855Courtesy of HYUNDAI MOTOR AMERICA

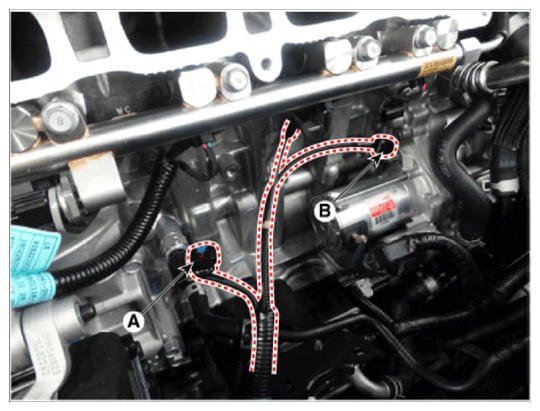

  3. Remove the wiring fixing clip after disconnecting the oil pressure sensor (OPS) connector (A) and engine coolant temperature sensor (ECTS) connector (B).
    G14676856Courtesy of HYUNDAI MOTOR AMERICA
