Repair Procedures: Removal
- Turn ignition switch OFF and disconnect the negative (-) battery cable.
- Remove the console upper cover.
(Refer to Body (Interior and Exterior) - "FLOOR CONSOLE ASSEMBLY ")

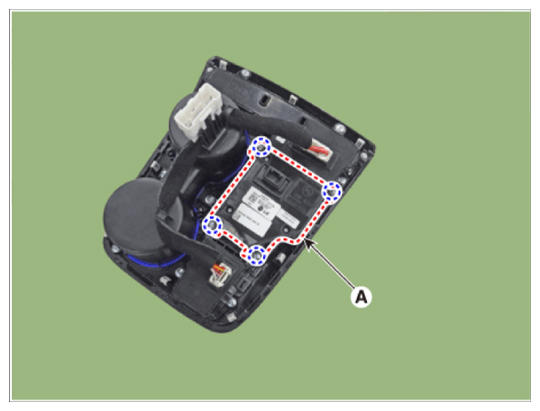

- Loosen the screw and then removing the electric shift button (A).

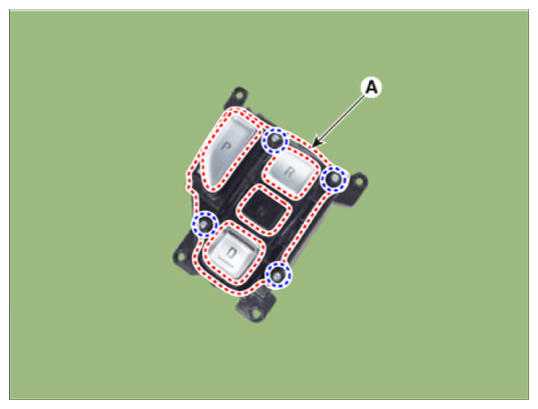

- Loosen the screw and then remove the bezel (A) from the electric shift button.
- Using a (-) driver and then remove the each position button.

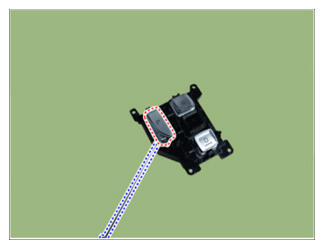

[P Button]

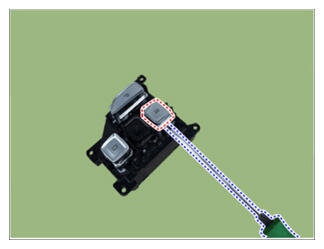

[R Button]

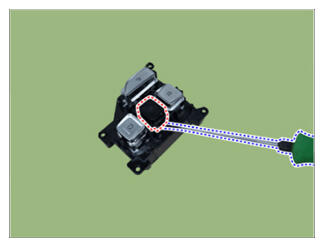

[N Button]

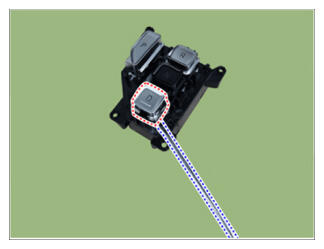

[D Button]
