System Initialization

System initialization is needed after battery power reset, to recognize the closing position of the tailgate to power tailgate module.

The initialization process - system initialization is needed to recognize the maximum opening and closing tailgate position exactly.

The power tailgate operates normally after system initialization is completed.

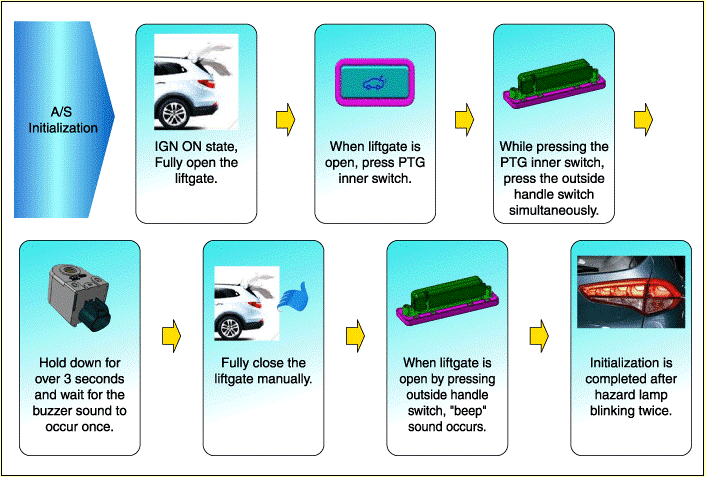

Procedure:

G16175435Courtesy of HYUNDAI MOTOR AMERICA
