Repair Procedures: Removal
- Turn the ignition switch OFF and disconnect the battery negative (-) cable.
- Disconnect the variable force solenoid connector (A).
- Remove the variable force solenoid from the engine after loosening mounting bolt (B).
Tightening Torque:
9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb.ft)

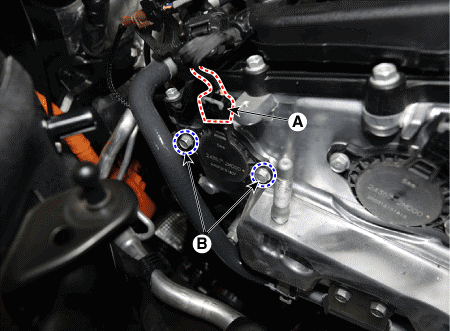

Variable force solenoid (VFS) [Bank 1/Intake]

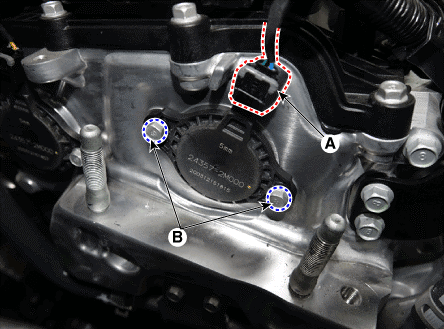

Variable force solenoid (VFS) [Bank 1/Exhaust]
