Repair Procedures: Removal

  1. Turn ignition switch OFF and disconnect the negative (-) battery cable.

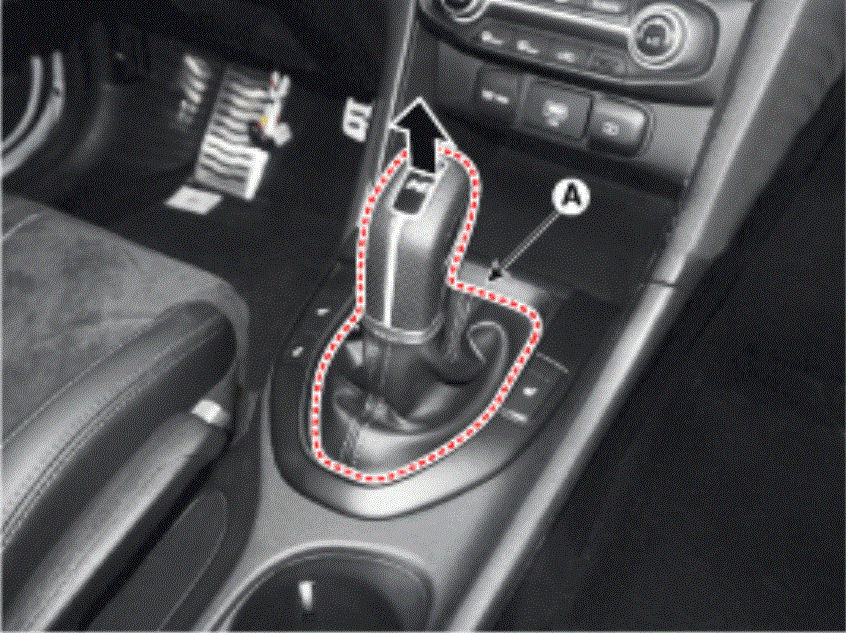

  2. Remove the shift knob & boots (A).
    G15474920Courtesy of HYUNDAI MOTOR AMERICA
  3. Remove the floor console assembly.

    (Refer to Body (Interior and Exterior) - "FLOOR CONSOLE ")

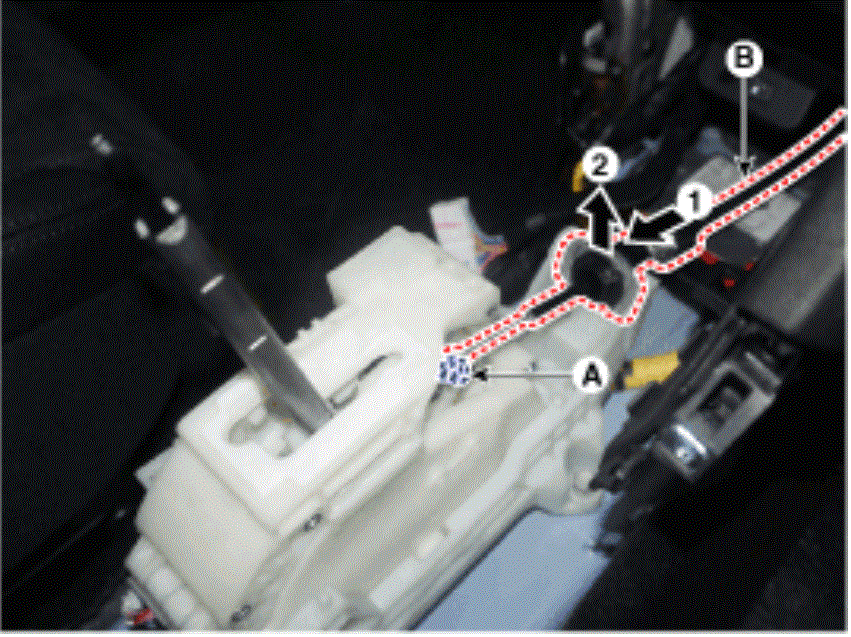

  4. Remove the snap pin (A) and then separate the shift cable (B).
    G15474921Courtesy of HYUNDAI MOTOR AMERICA

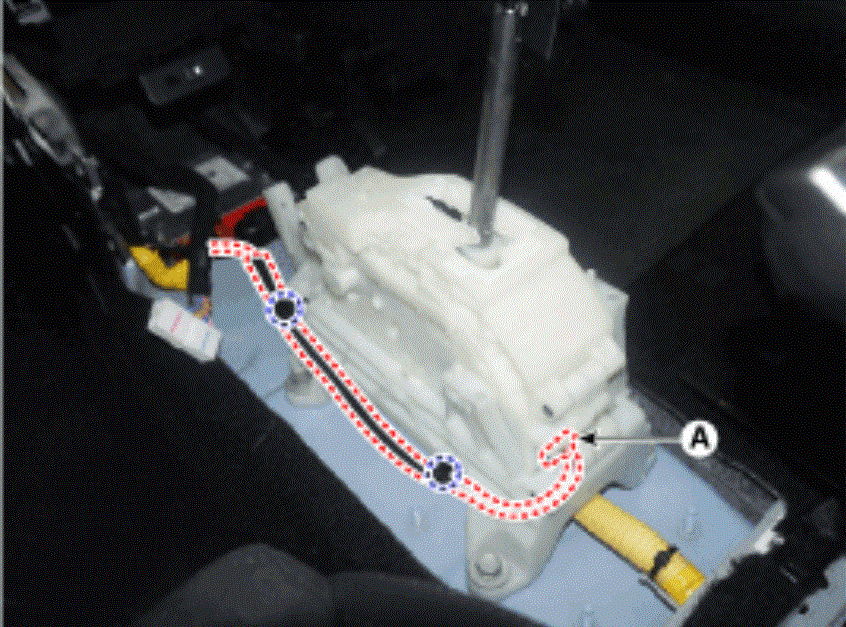

  5. Separate the wiring and then disconnect the connector (A).
    G15474922Courtesy of HYUNDAI MOTOR AMERICA

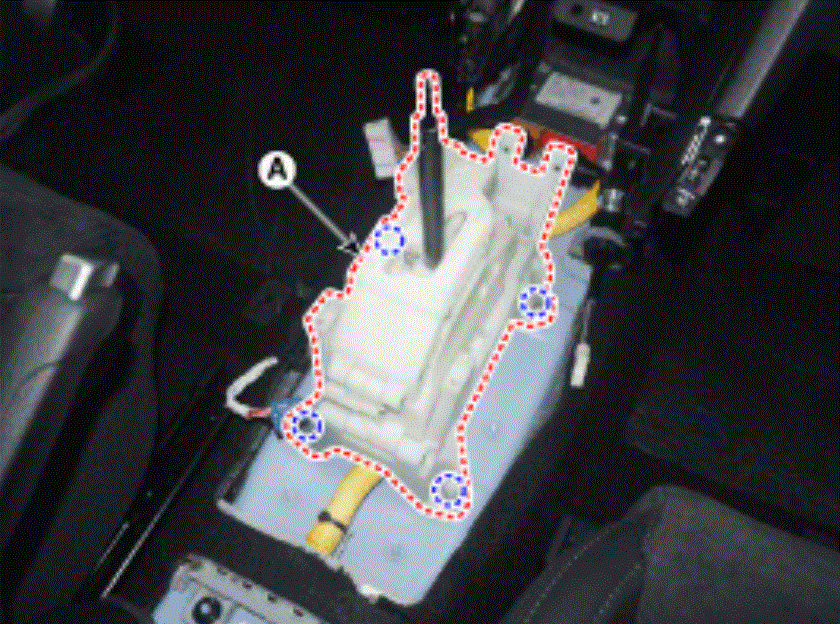

  6. Loosen the shift lever mounting bolts and then removing the shift lever (A).

    Tightening torque:

    8.8-13.7 N.m (0.9-1.4 kgf.m, 6.5-10.1 lb-ft)

    G15474923Courtesy of HYUNDAI MOTOR AMERICA
