Driver Power Window Switch
- Disconnect the negative (-) battery terminal.
- Remove the driver door trim.
(Refer to Body - "FRONT DOOR TRIM ")

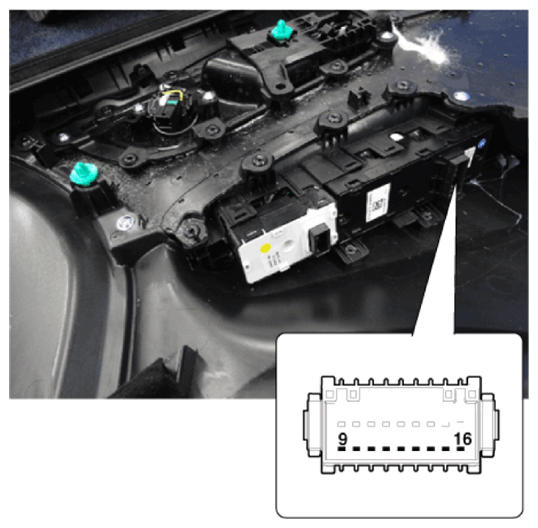

- Disconnect the power window switch (A) connector from the door trim.
- Check for continuity between the terminals in each switch position as shown in figures below.

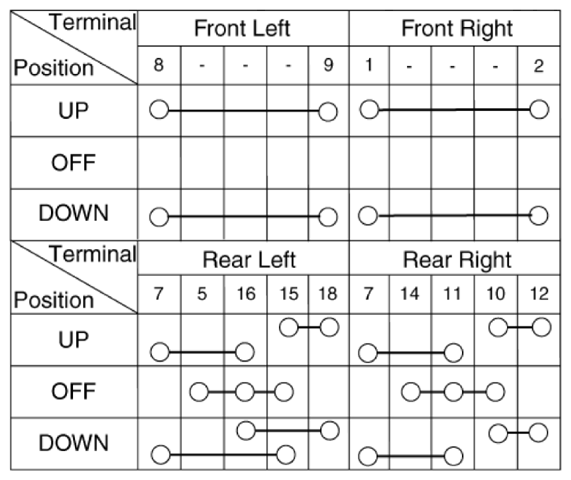

[Power Window Switch Inspection]
[Power Door Lock Switch Inspection]

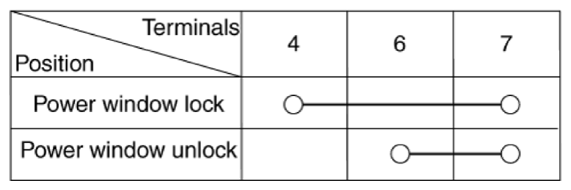

[Power Window Lock Switch Inspection]
