Repair Procedures: Removal

  1. Move the shift lever to "Nl".
  2. Turn ignition OFF switch and the disconnect the negative (-) battery cable.
  3. Remove the air cleaner assembly and air duct.

    (Refer to Engine Mechanical System - "AIR CLEANER REPAIR PROCEDURES ")

  4. Remove the battery and battery tray.

    (Refer to Engine Electrical System - "BATTERY REPAIR PROCEDURES ")

  5. Remove the ECM.

    (Refer to Engine Control/Fuel System - "ENGINE CONTROL MODULE (ECM) REPAIR PROCEDURES ")

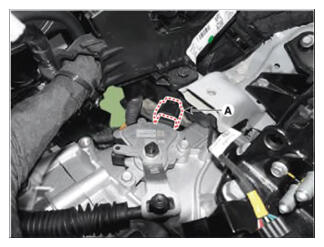

  6. Disconnect the position switch connector (A).
    G16186496Courtesy of HYUNDAI MOTOR AMERICA

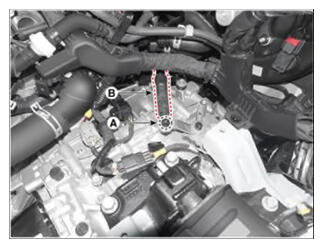

  7. Loosen the mounting nut (A) and then separate the shift cable (B) from the bracket.
    G16186497Courtesy of HYUNDAI MOTOR AMERICA

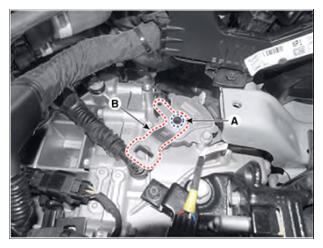

  8. Remove the manual control lever (B) after loosening the mounting nut (A).
    G16186498Courtesy of HYUNDAI MOTOR AMERICA

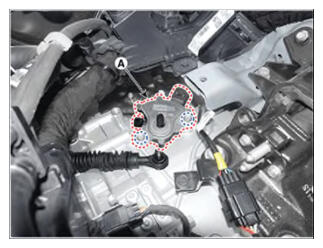

  9. Loosen the bolts and then remove the position switch (A).
    G16186499Courtesy of HYUNDAI MOTOR AMERICA
