Repair Procedures: Installation
- To install, reverse the removal procedures.NOTE:
- Install the cable after placing the shift lever and the manual control lever in the N position.

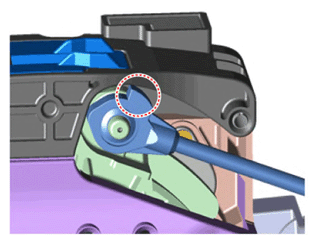

CAUTION:- Lug must assemble upward.

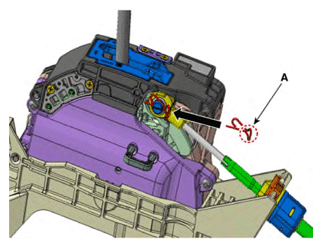

- Install the snap pin after placing the shift lever in the N position.
- When assembling the snap pin, be careful about the correct direction.
- The band portion (A) must point to the front of the vehicle.
- The band portion (A) must point outwards.
