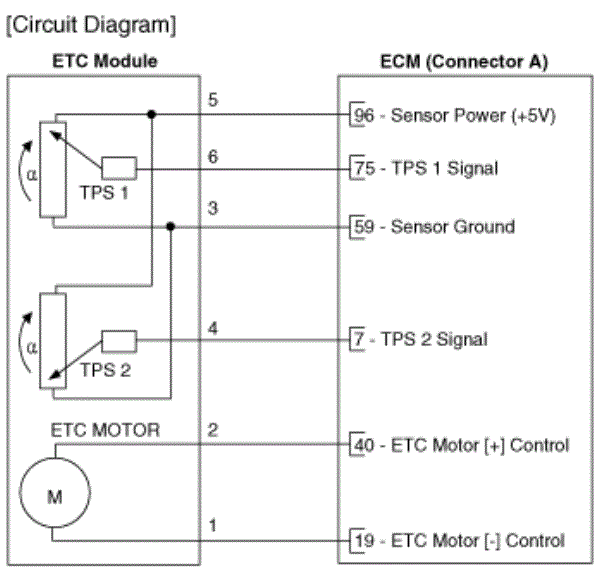

Circuit Diagram: Notes

G15477070Courtesy of HYUNDAI MOTOR AMERICA

[Connection Information]

Terminal Connected Function
1 ECM Connector A (19) ETC Motor (-) Control
2 ECM Connector A (40) ETC Motor (+) Control
3 ECM Connector A (59) Sensor Ground
4 ECM Connector A (7) TPS 2 Signal
5 ECM Connector A (96) Sensor Power (+5V)
6 ECM Connector A (75) TPS 1 Signal
