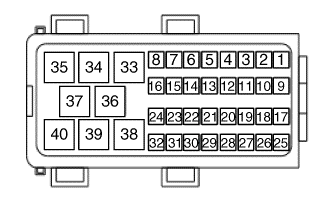

Connector And Terminal Function

Courtesy of HYUNDAI MOTOR AMERICA

Pin	Function
1	Power
2	Ground
3	H-CAN High
4	H-CAN Low
5	P-CAN High
6	P-CAN Low
7	Position sensor ground
8	-
9	-
10	Position sensor power 5 V
11	Electronic shift actuator sensor power 5 V
12	IG1
13	Electronic shift actuator sensor signal 2
14	Electronic shift actuator sensor signal 1
15	Electronic shift actuator sensor ground
16	-
17	-
18	-
19	-
20	-
21	-
22	-
23	-
24	-
25	-
26	-
27	Position sensor signal 1
28	Position sensor signal 2
29	P position output signal
30	-
31	Back-up lamp signal
32	-
33	Electronic shift actuator motor U
34	Electronic shift actuator motor V
35	Electronic shift actuator motor W
36	Power
37	Electronic shift actuator power
38	Ground
39	-
40	-
