Repair Procedures: Removal
- Turn ignition switch OFF and disconnect the postive (+) battery cable.

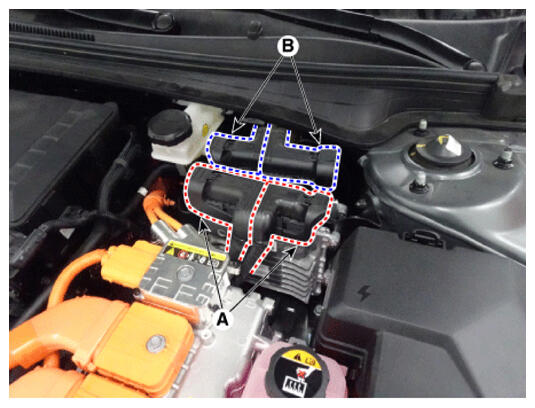

- Disconnect the TCM Connector (A).
- Disconnect the ECM Connector (B).

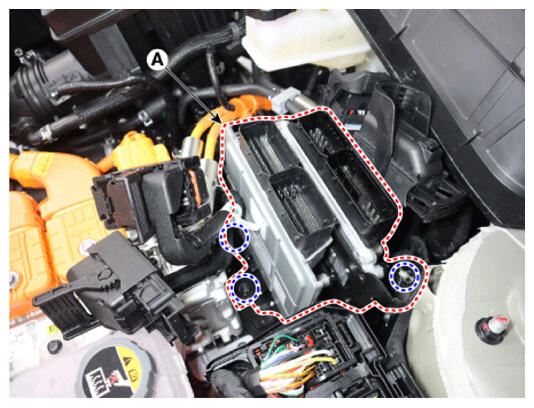

- Remove the ECM and TCM bracket (A) after removing the bolts and nut.
Tightening torque:
9.8 - 11.7 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.6 lb-ft)

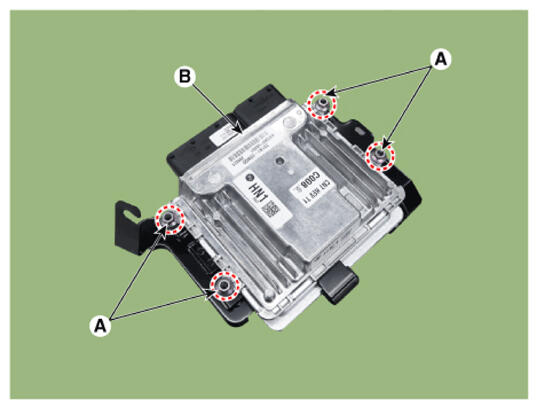

- Remove ECM (B) from the ECM and TCM bracket after loosening the bolt and nut (A).
Tightening torque:
9.8 - 11.7 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.6 lb-ft)
